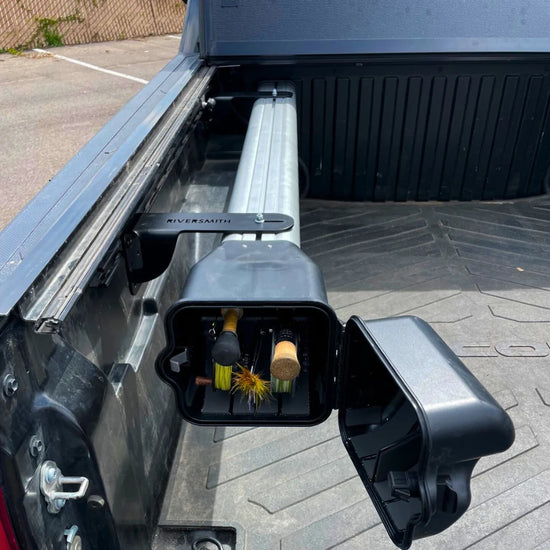

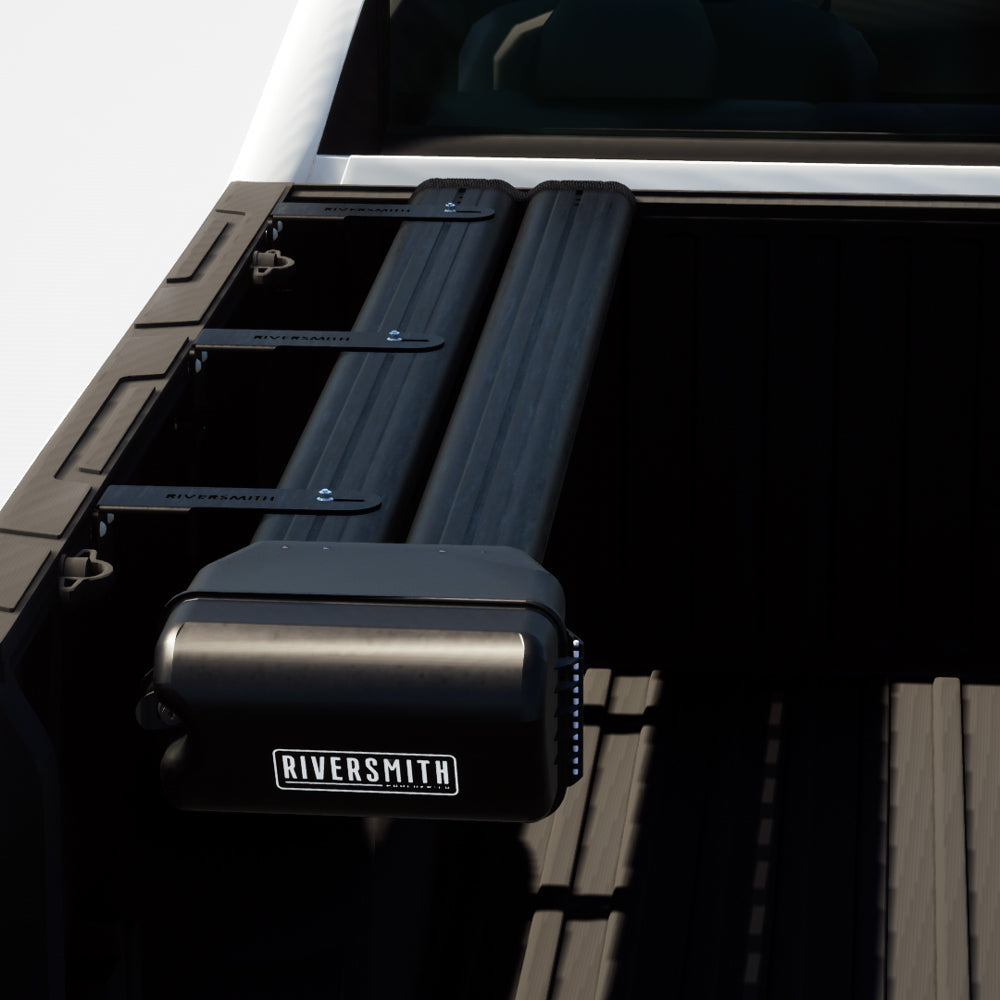

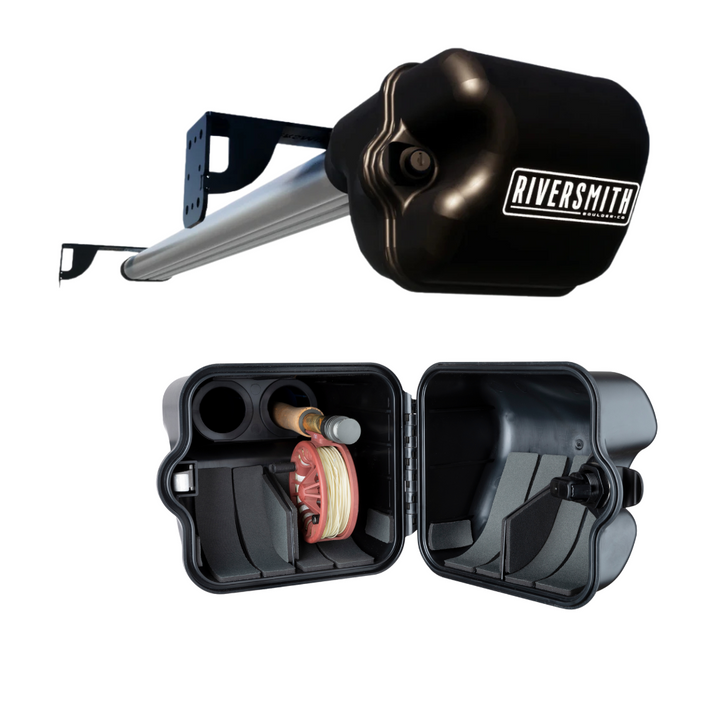

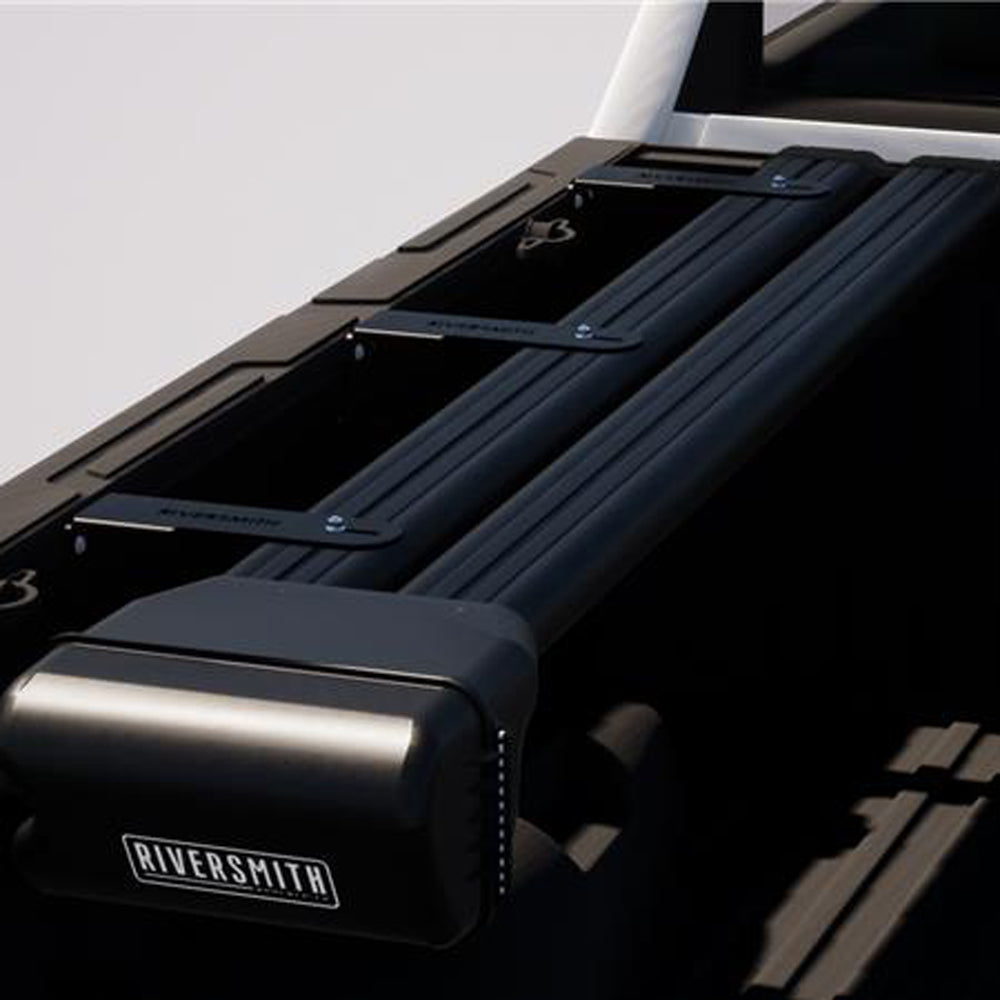

ShortCut River Quiver with Truck-Bed Mount

A: No, the mounting system is designed to hold the weight of the product with rods inside. Do not attach additional accessories or stack objects on top the ShortCut when installed with bed mounts.

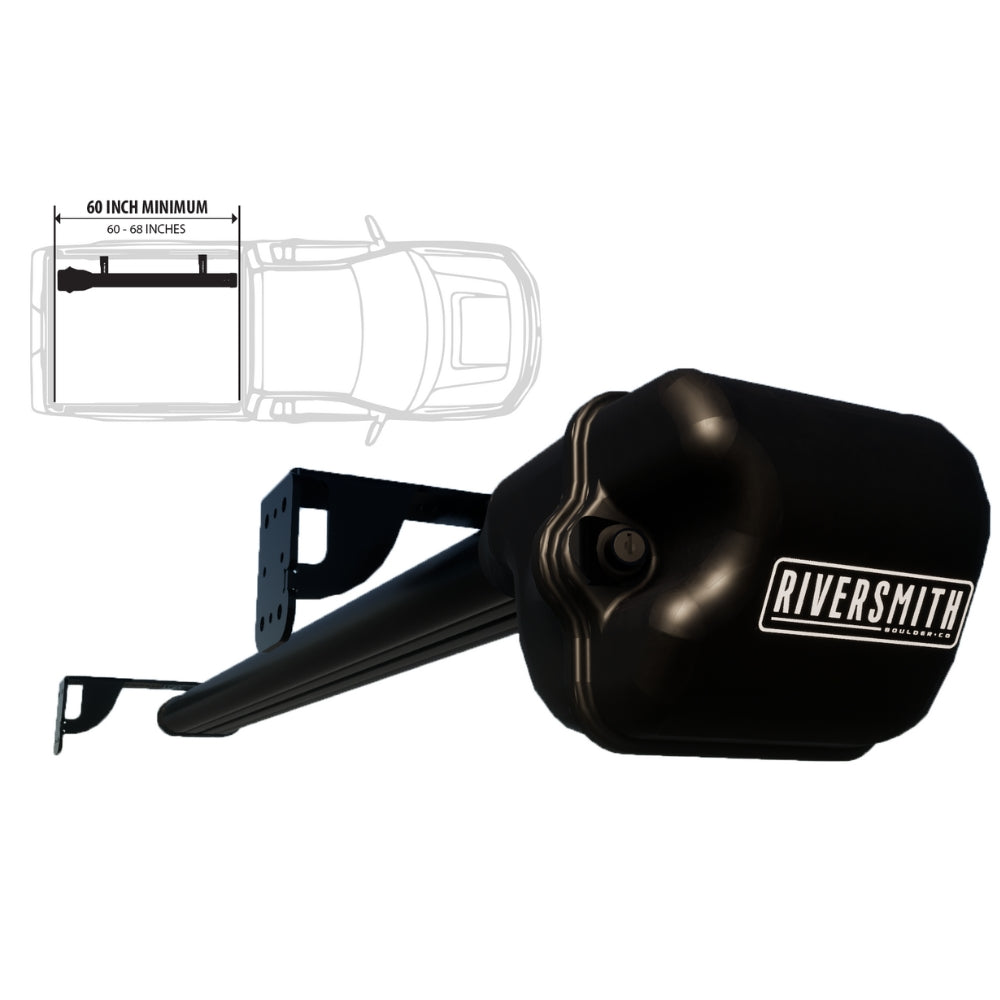

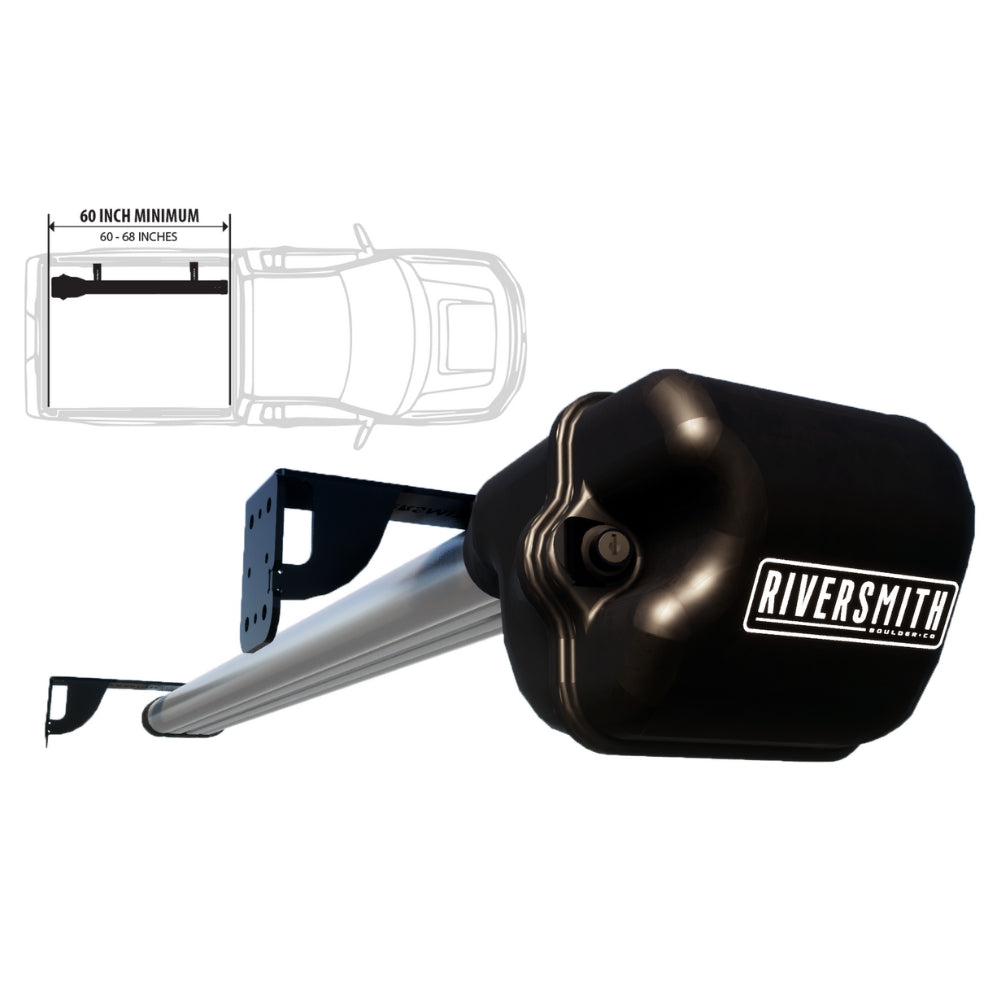

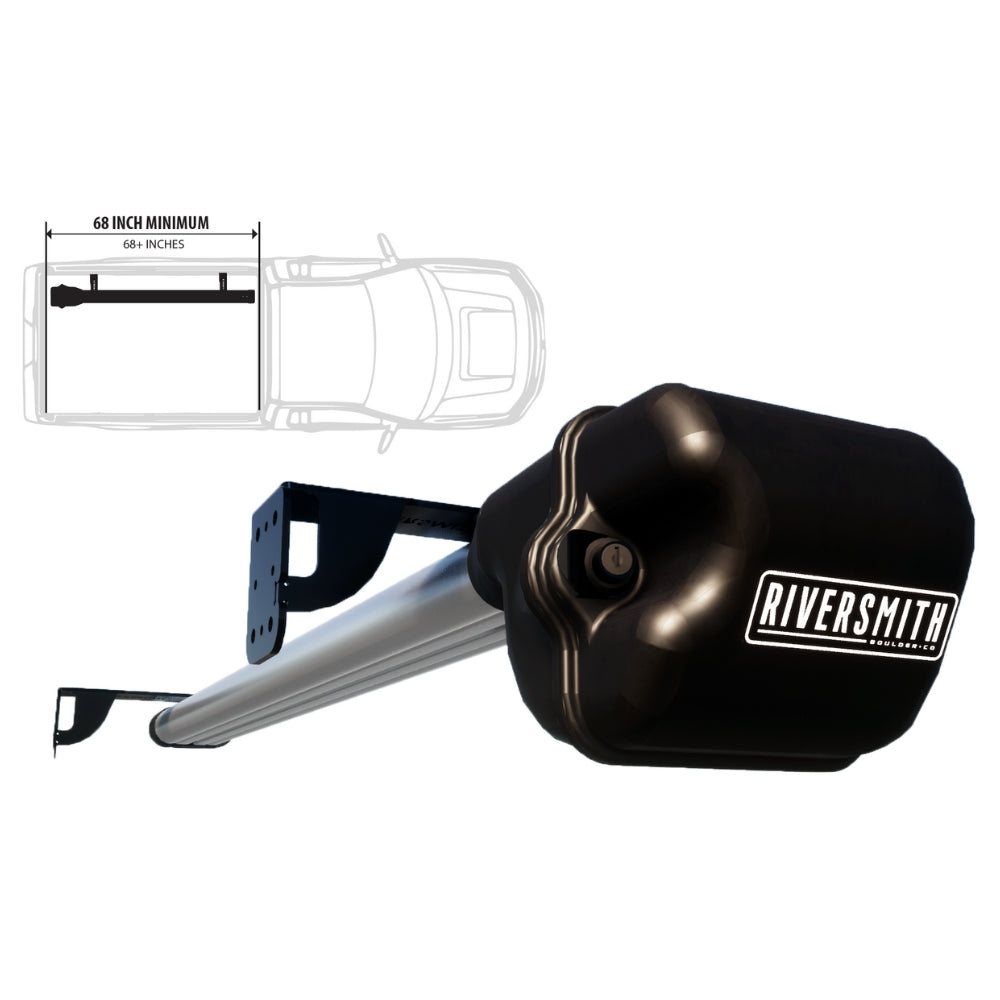

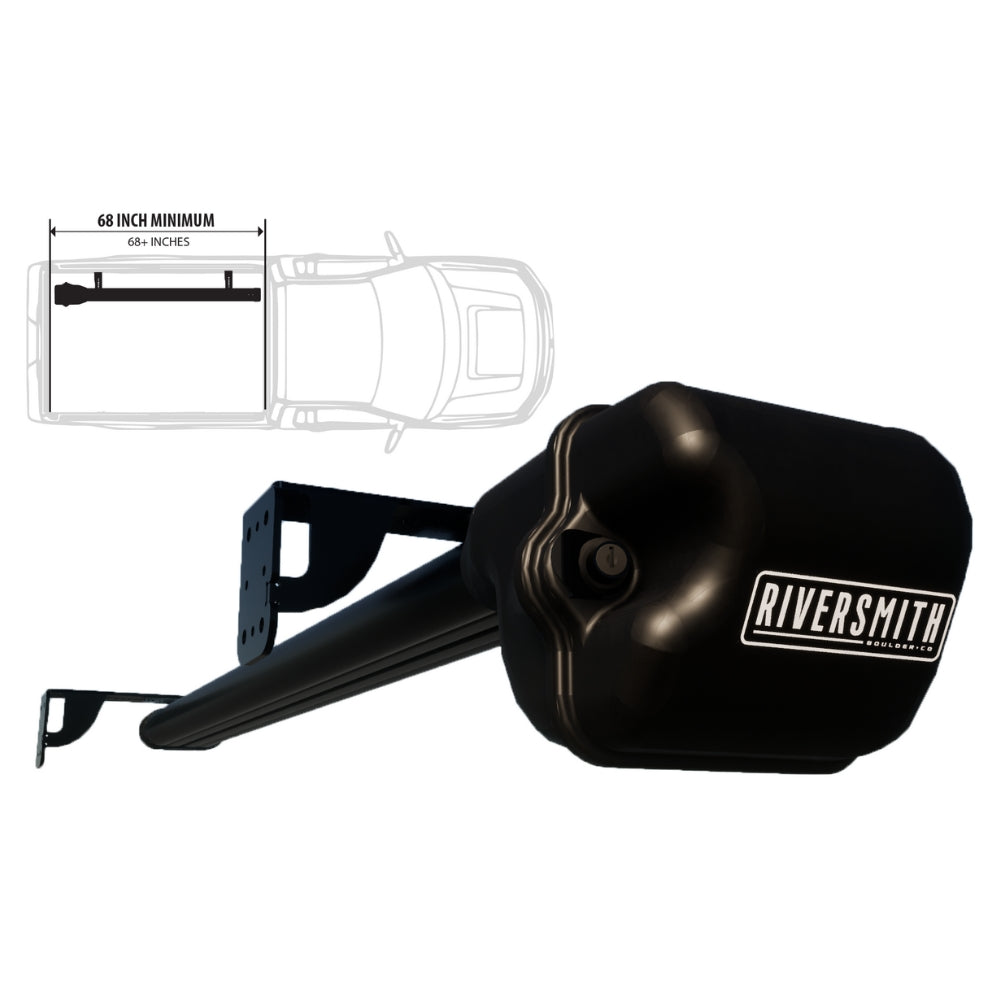

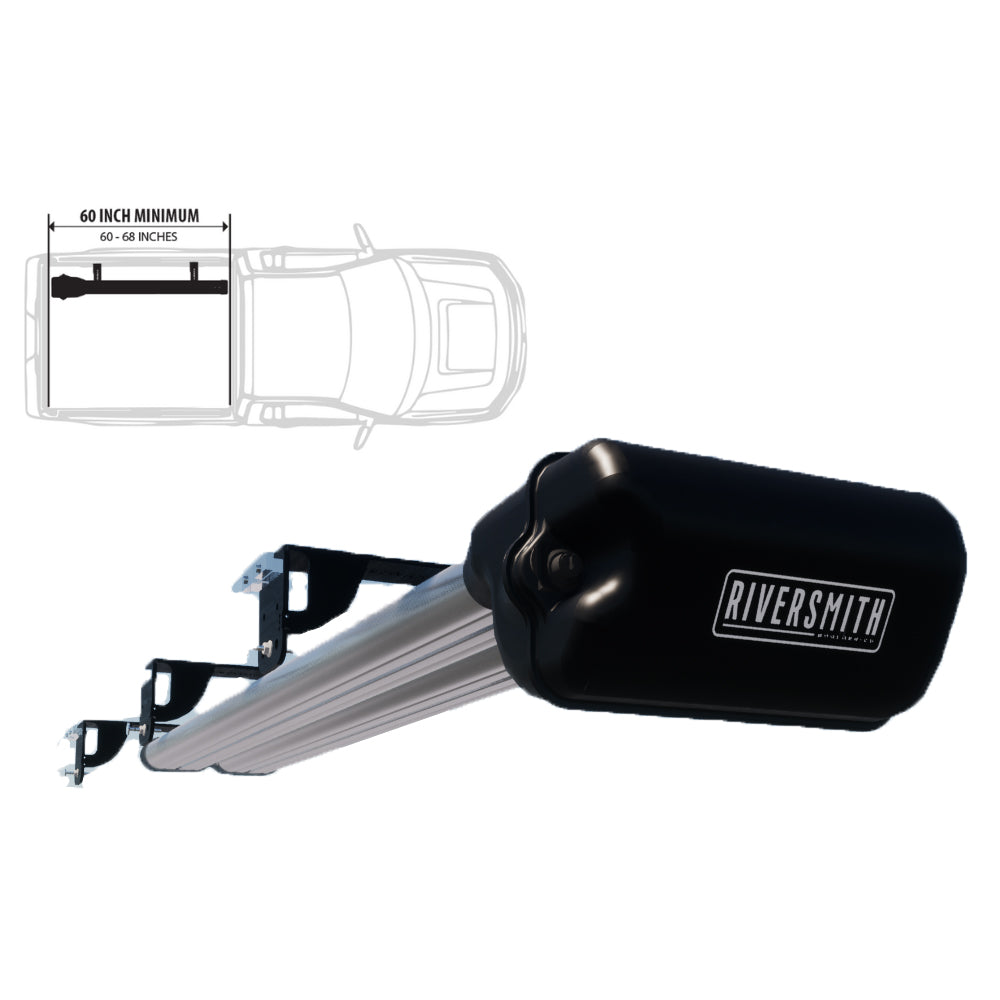

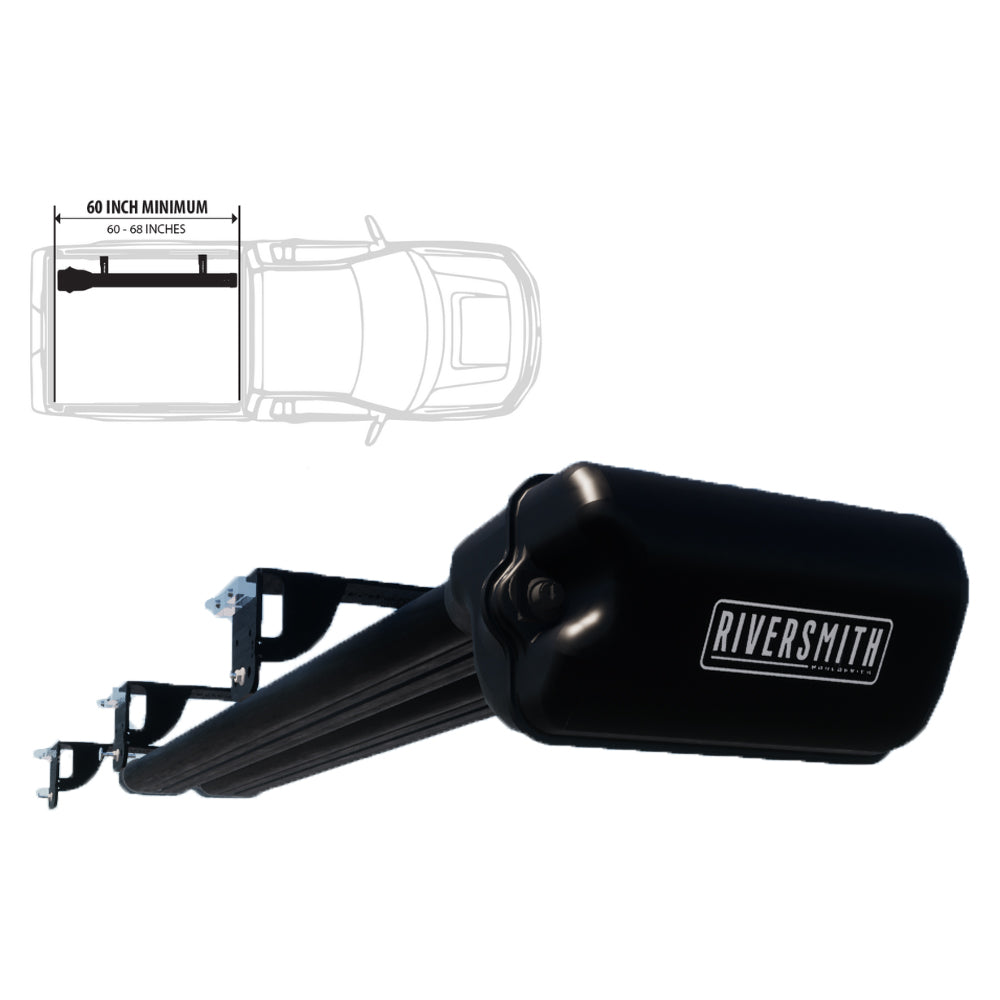

A: A standard ShortCut is 5’-8” long from tip to tail and will not fit in a 5’ short bed. You can choose to remove the removable nose cone, cut down the aluminum extrusion by 8”, drill new 3/16” diameter holes for the nose cone rivets, and reattach the nose cone. In doing so, however, Riversmith is not liable for any damage caused by this DIY modification.

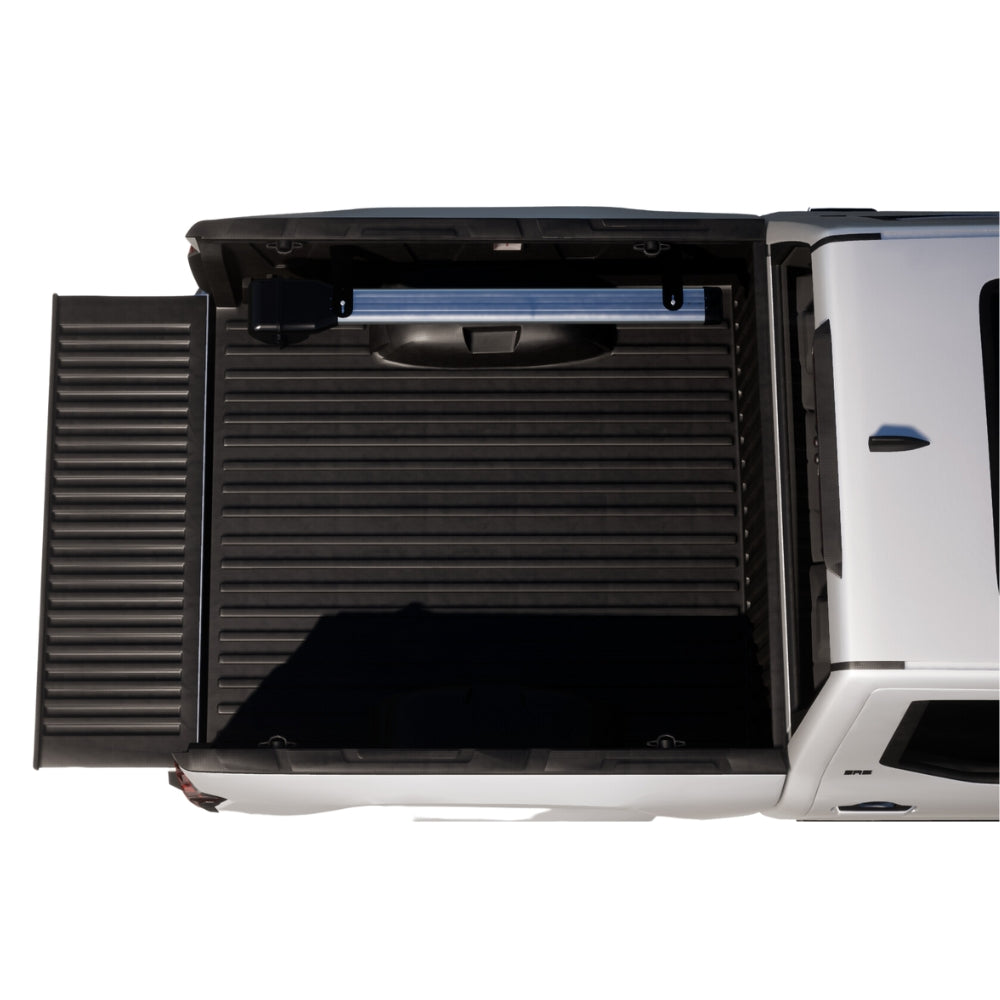

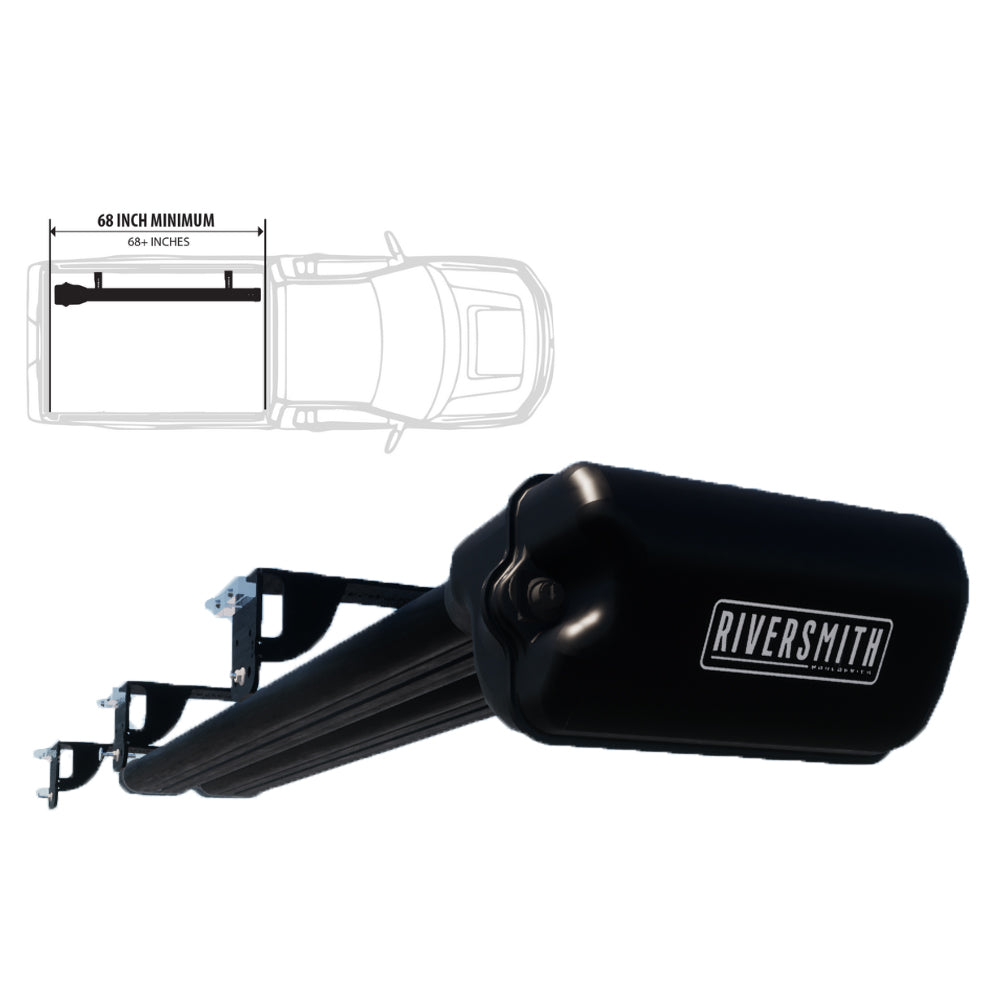

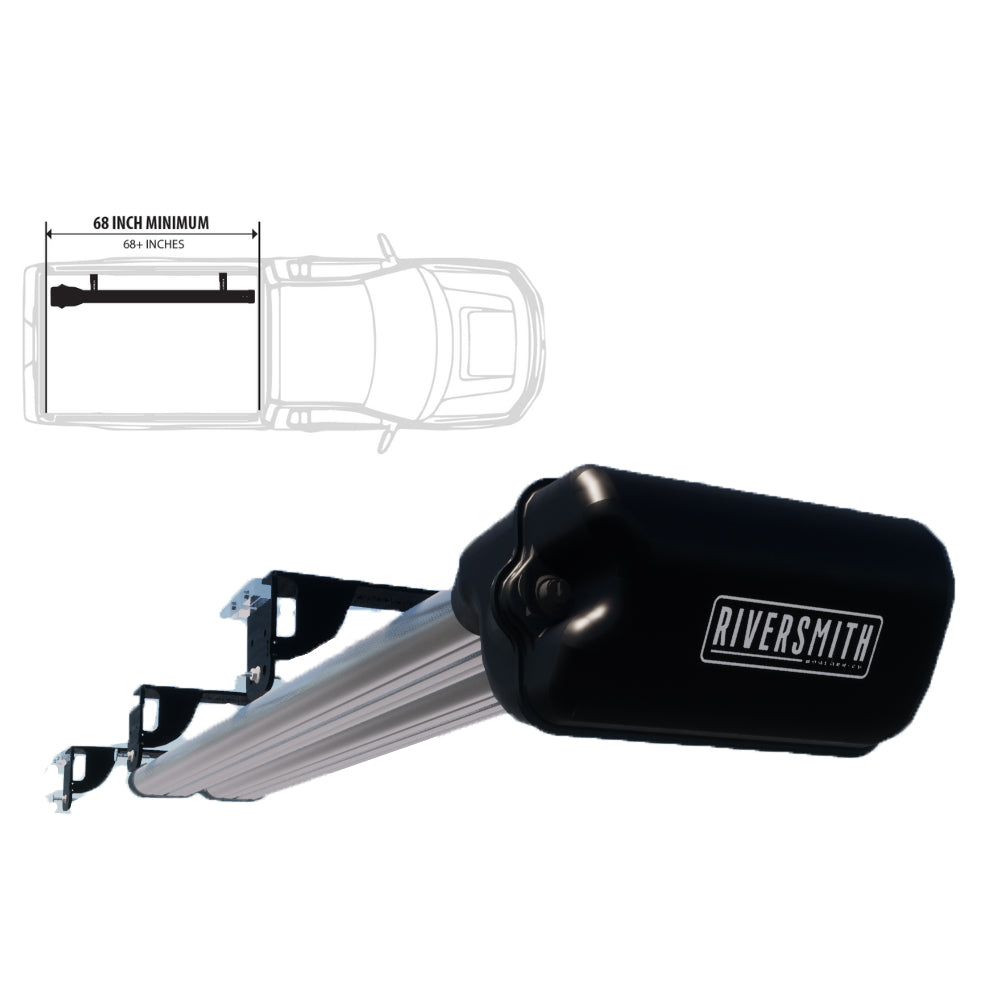

A: Yes you can, as long as your pickup bed is 5’-8” or longer. See first question in the FAQs for information on how to modify your Standard 2-Banger ShortCut for beds shorter than 5’-8”.

A: No, the bed mounts are designed to support 2-Bangers only. If you want to install a 4-Banger ShortCut in the bed of your pickup, please contact directly at info@riversmith.com

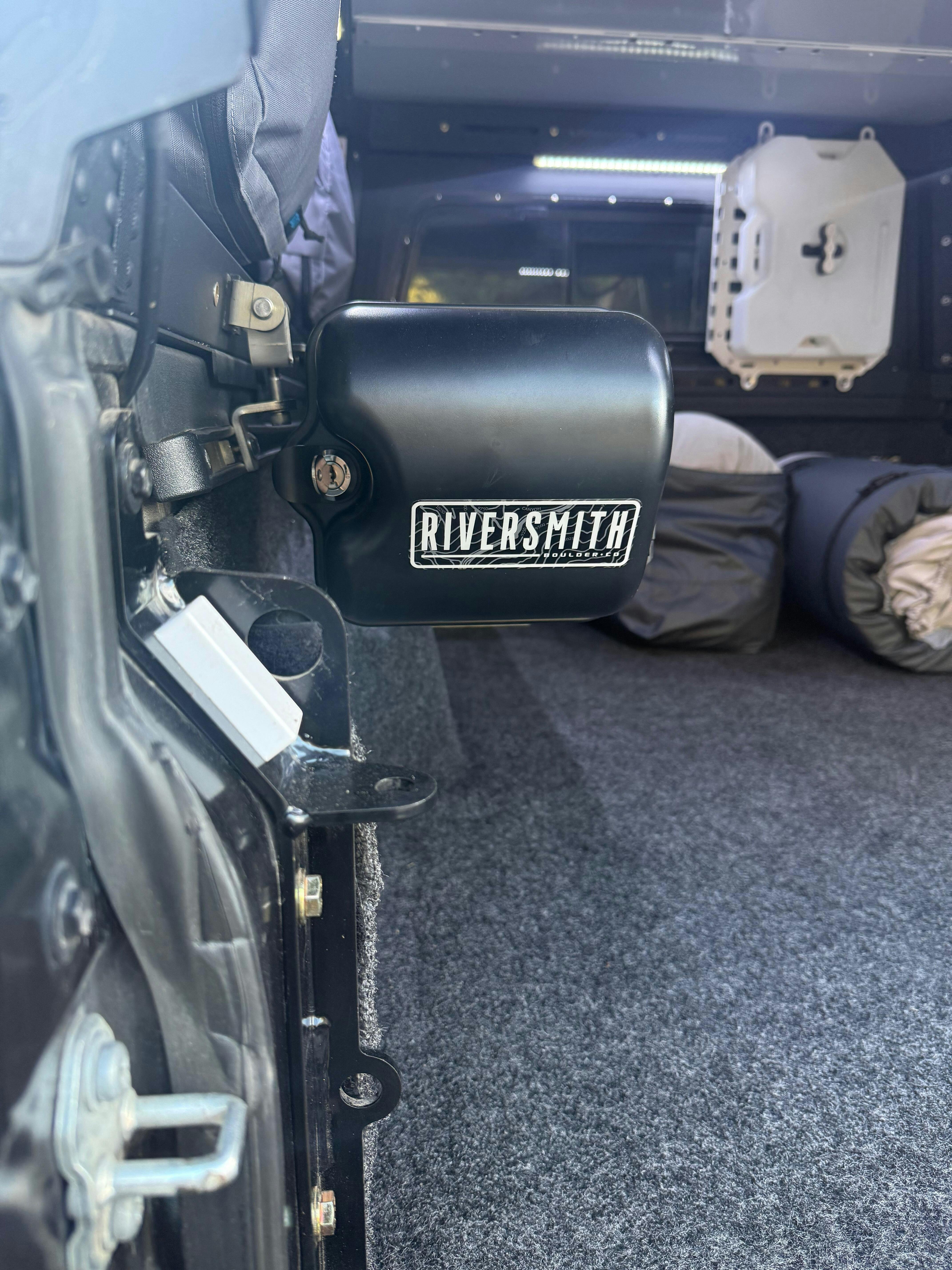

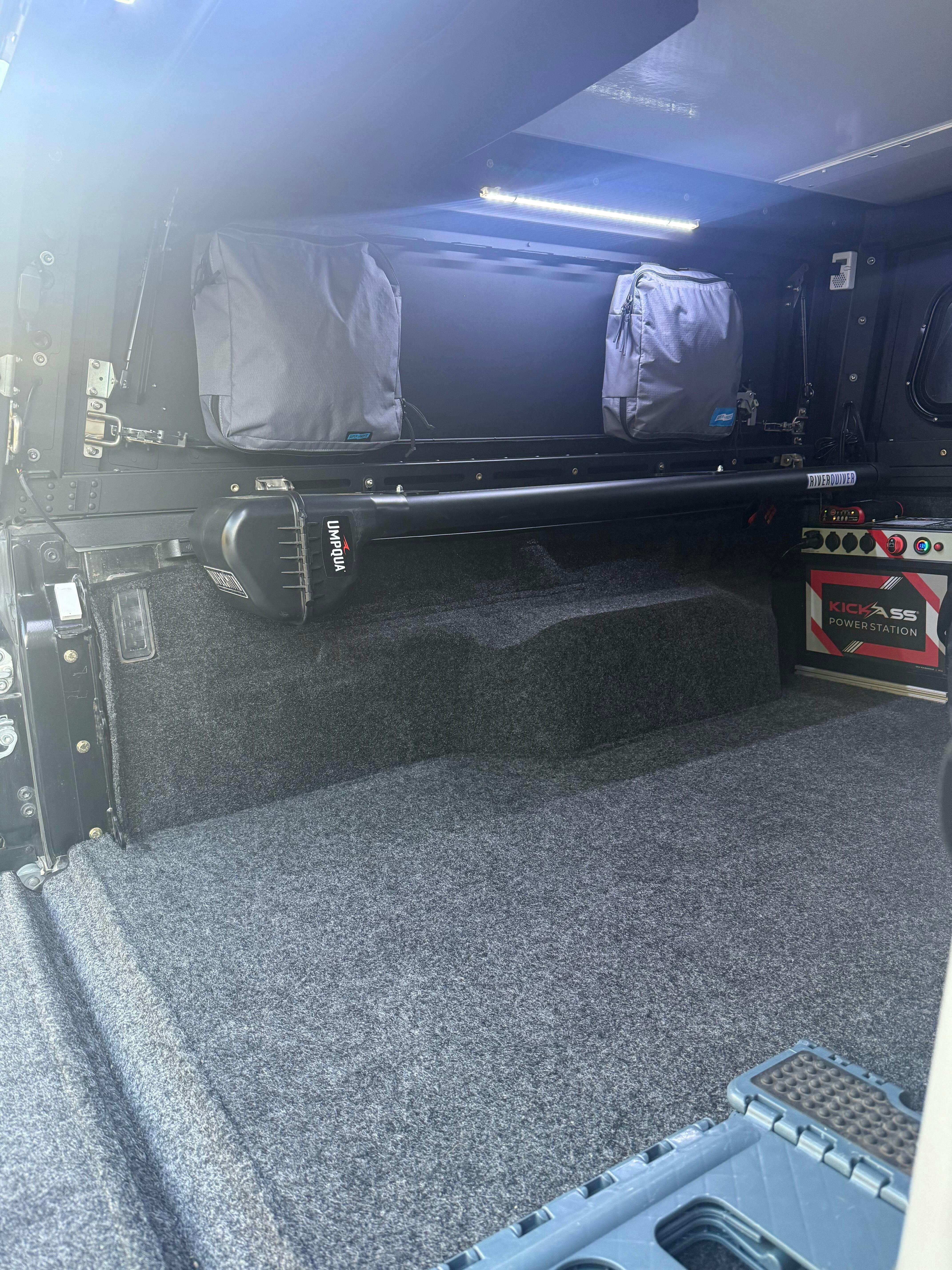

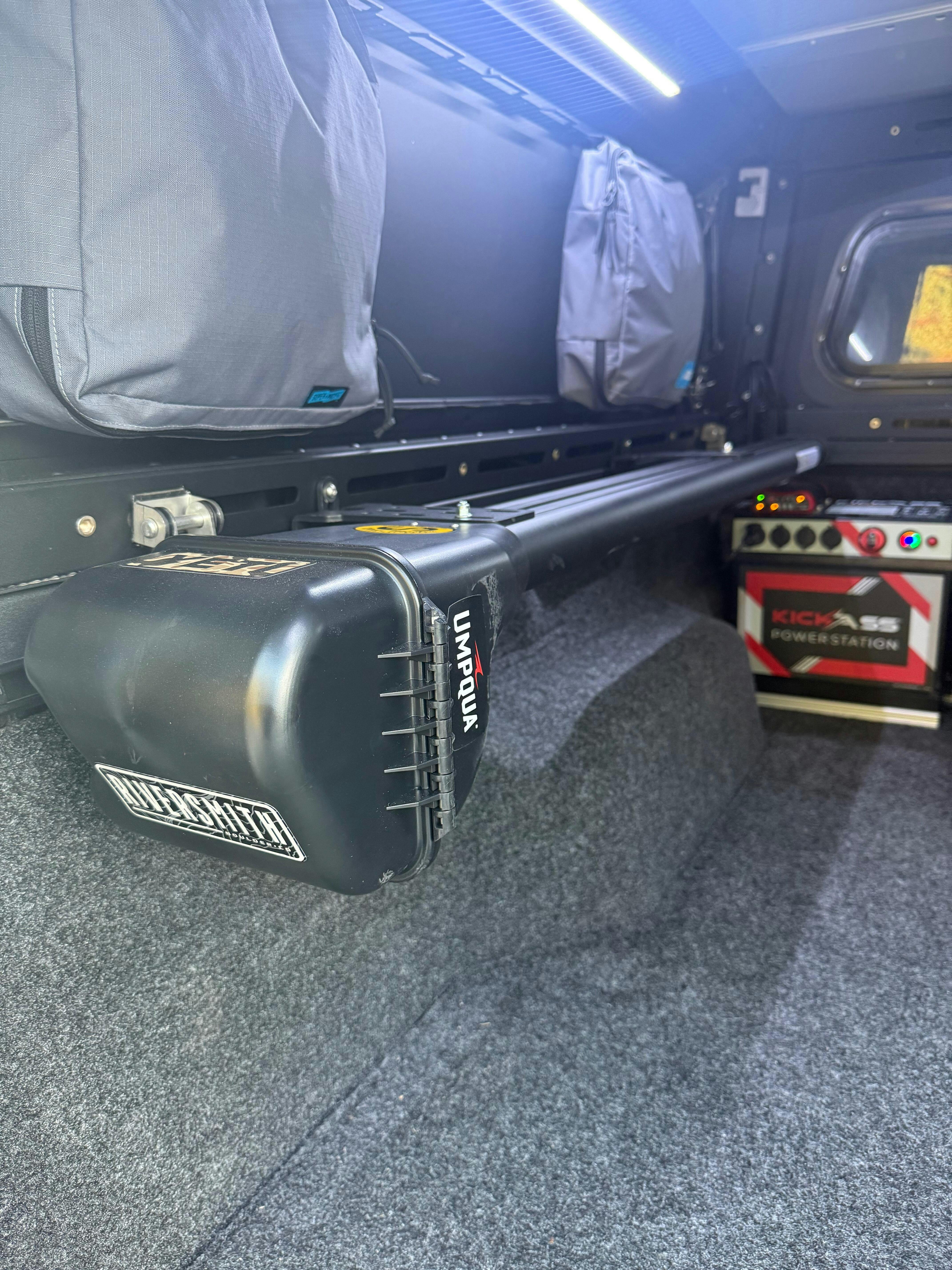

A: The bed mount slot nut for cargo rail attachment is sized to fit 7/16” and ½” deep cargo rails. If your cargo rail is narrower than 7/16” you may need to purchase an alternate slot nut that matches your rail. The thread size for the mount bolts is 3/8”-16.

A: There are various types of bed liners with the two most common types being drop-in and spray-in. Drop-in bed liners are typically plastic and attach to the interior bed panels with screws or other types of fasteners. Whereas a spray-in bed liner is a coating applied directly overtop the bed and bed panels themselves. Start by looking for fasteners in your bed liner. If you locate fasteners, remove a couple, and see if you can peel back the liner from the bed panel. If you can, then you have a drop-in bed panel.

A: In cases that your drop-in bed liner is flush to the interior bed panel, the truck bed mounts can be attached through the bed liner using the self-tapping screws. But if there are gaps larger than ¼” between the bed liner and the bed panel, proper installation of the bed mounts will not occur. We advise you purchase cargo rails from the manufacturer of your vehicle and install the bed mounts using the included cargo rail attachment hardware.

A: No, the bed mount system is not designed to attach directly to or through bed liners. They are designed to attach to a cargo rail or directlyto the bed panel. Drop-in bed liners create a 1” to 4” gap between the liner and the bed panel resulting in no structure for the fasteners to grab. You can either cut out two areas in the liner for each mount to be placed against the bed panel or remove the liner completely.

A: Yes, the bed mount can attach to your bed panel through your spray in bed liner with the self-tapping screws. You should not, however, ever attach through a drop-in bed liner.
