ShortCut River Quiver (5'2)
Versatile mounting options make it possible to fit a River Quiver onto most vehicle crossbars.

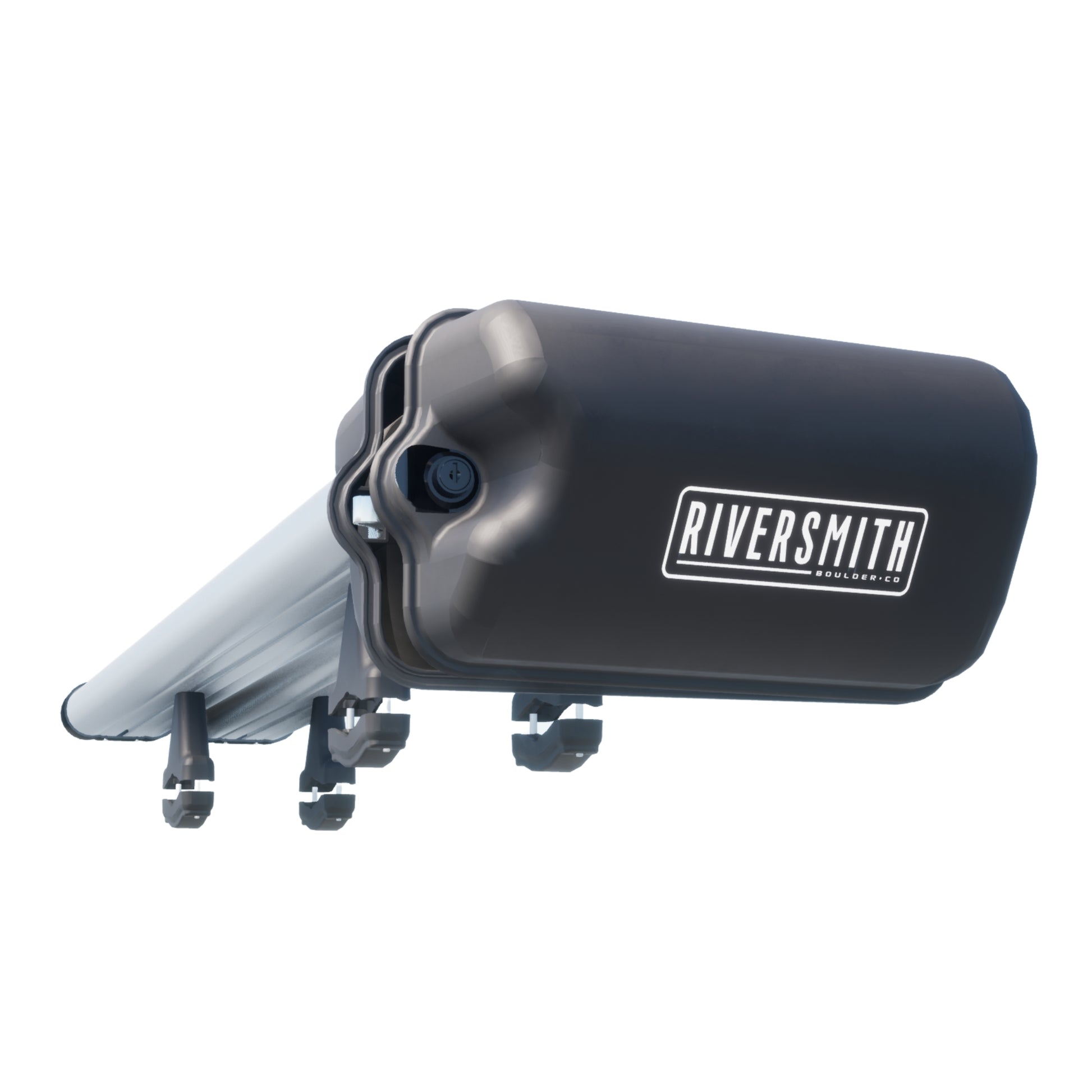

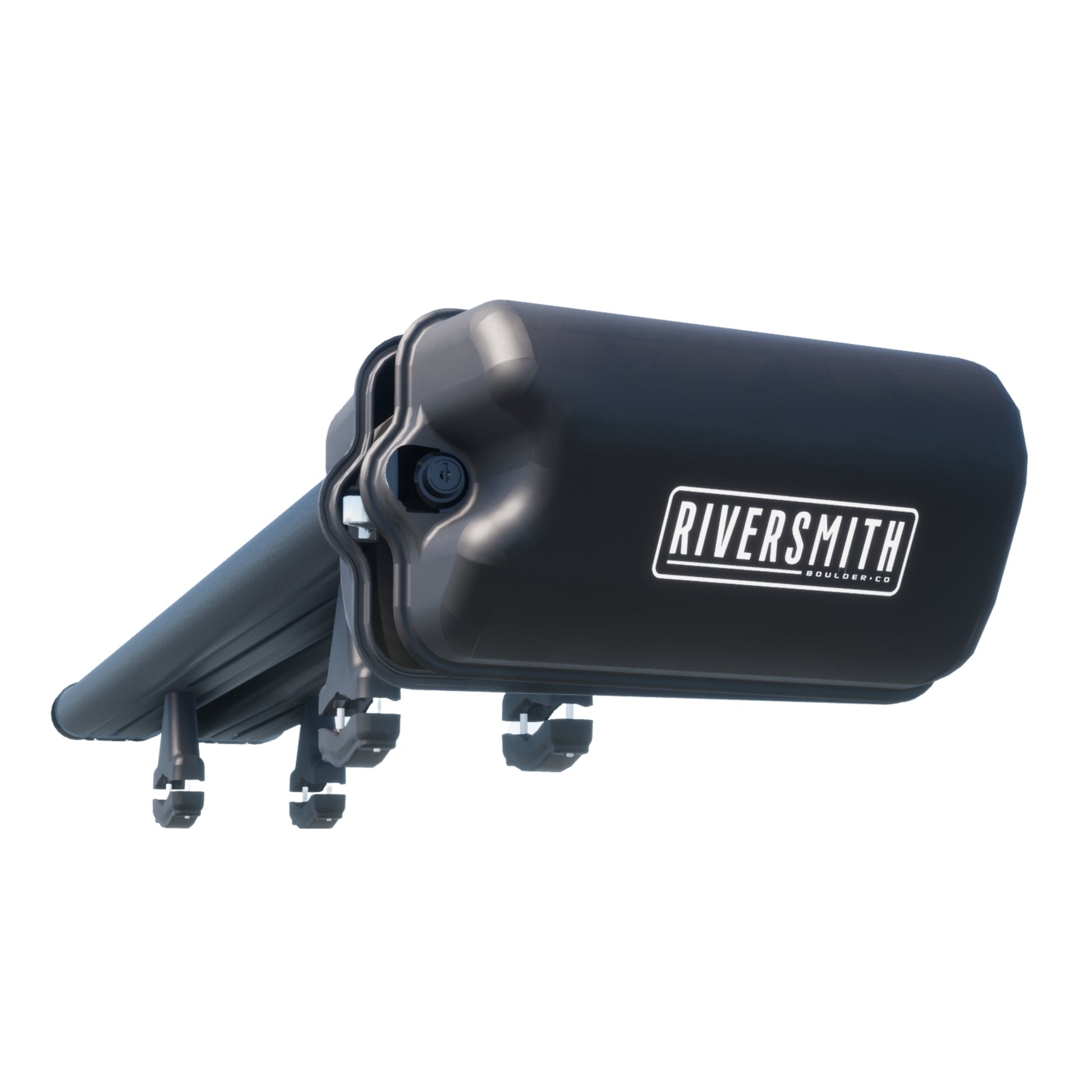

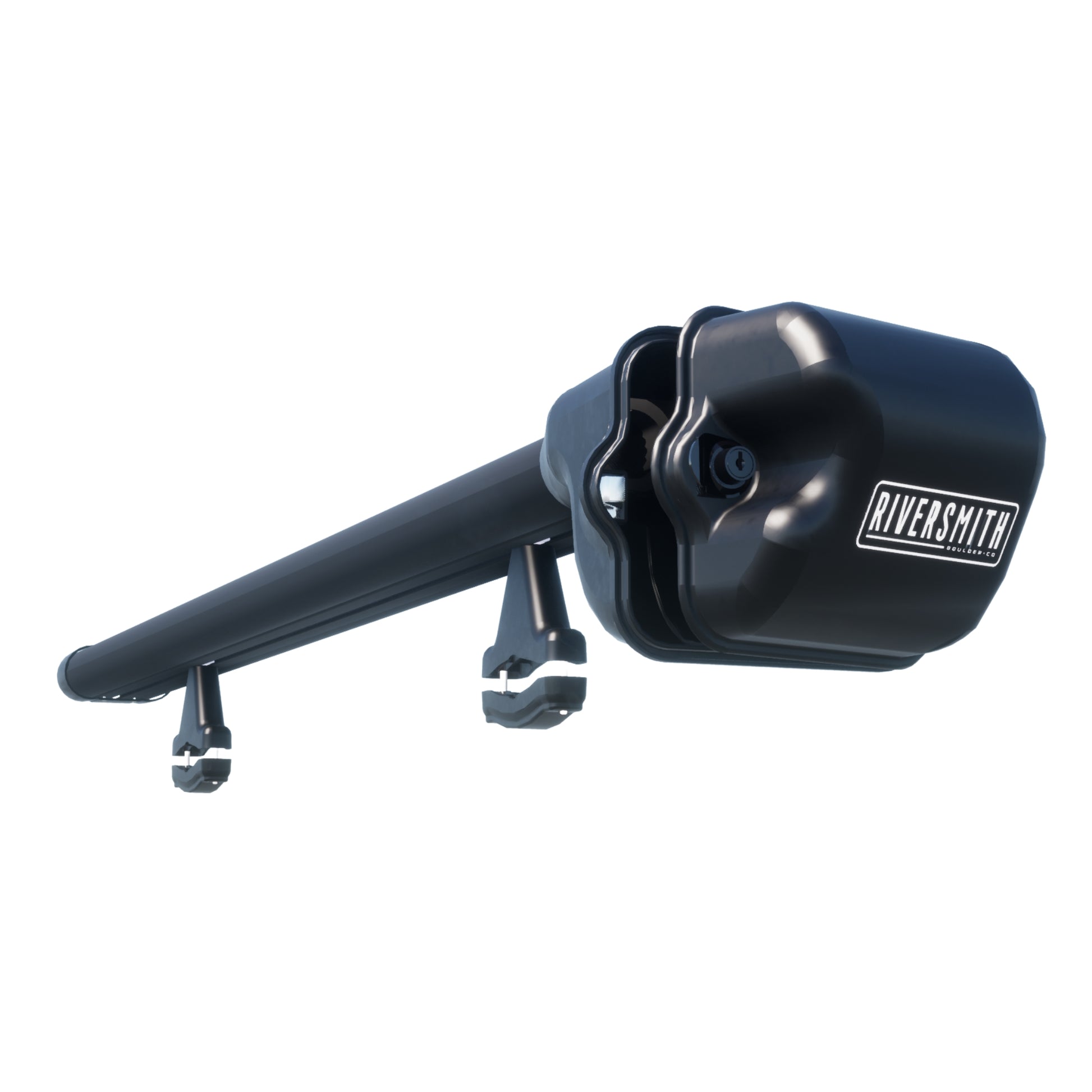

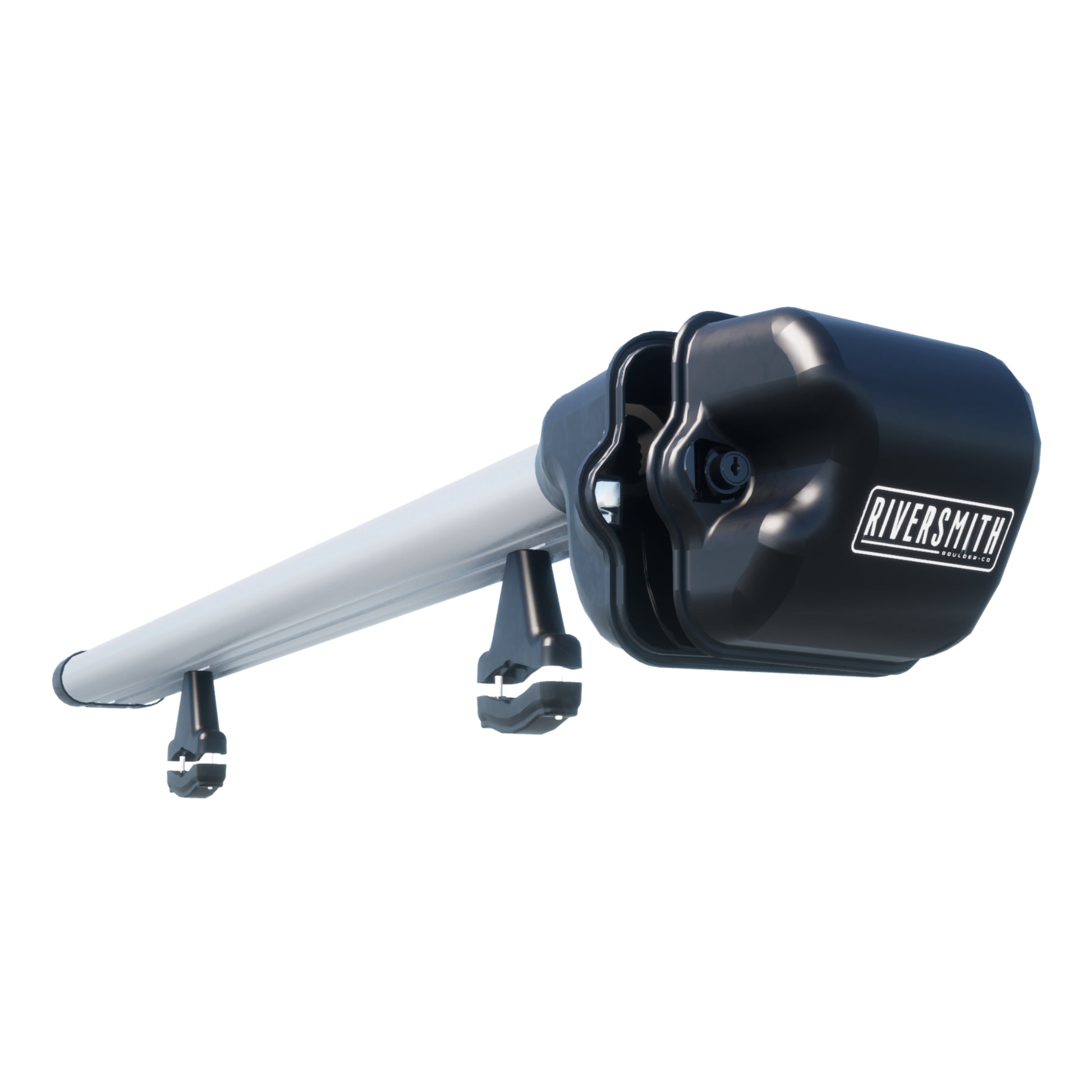

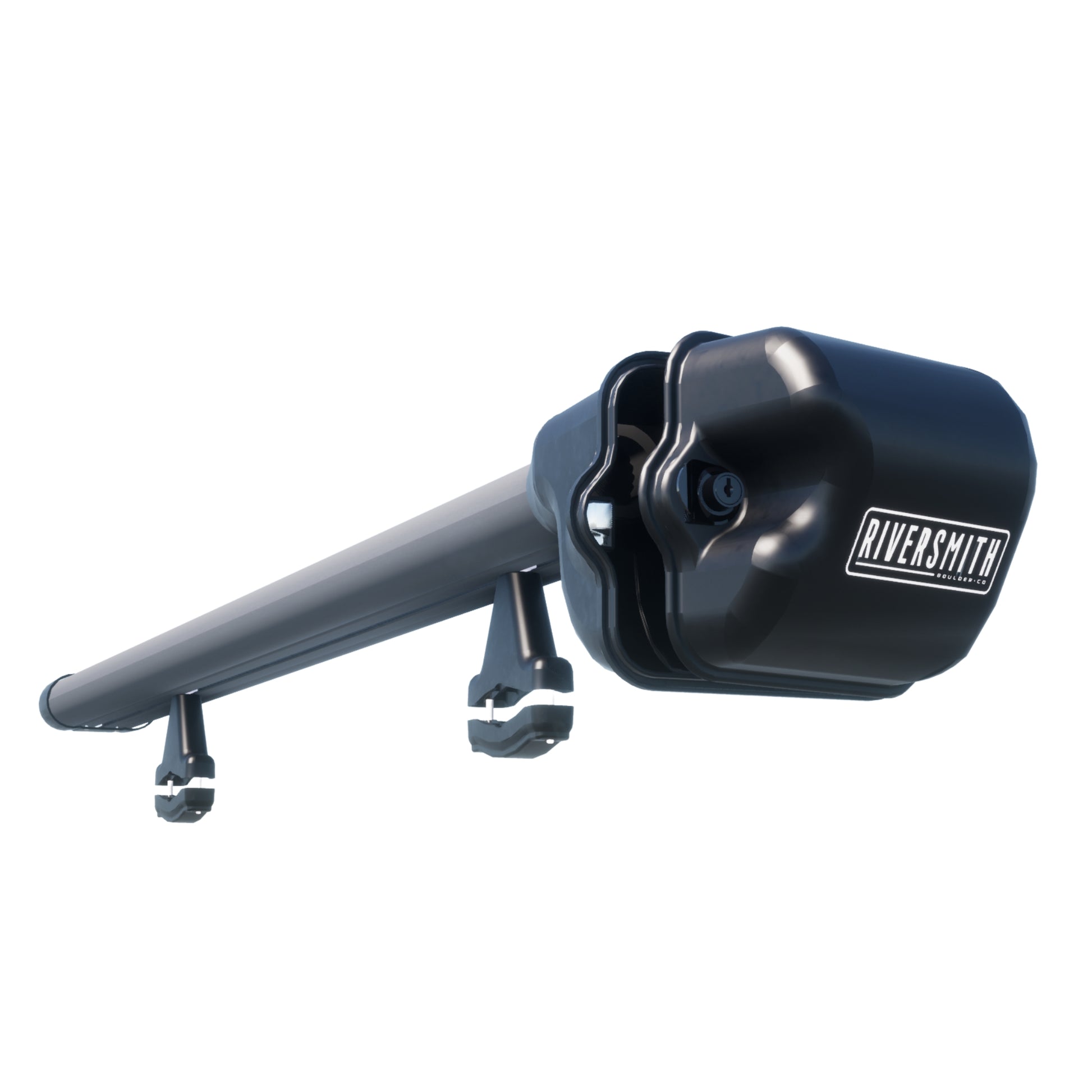

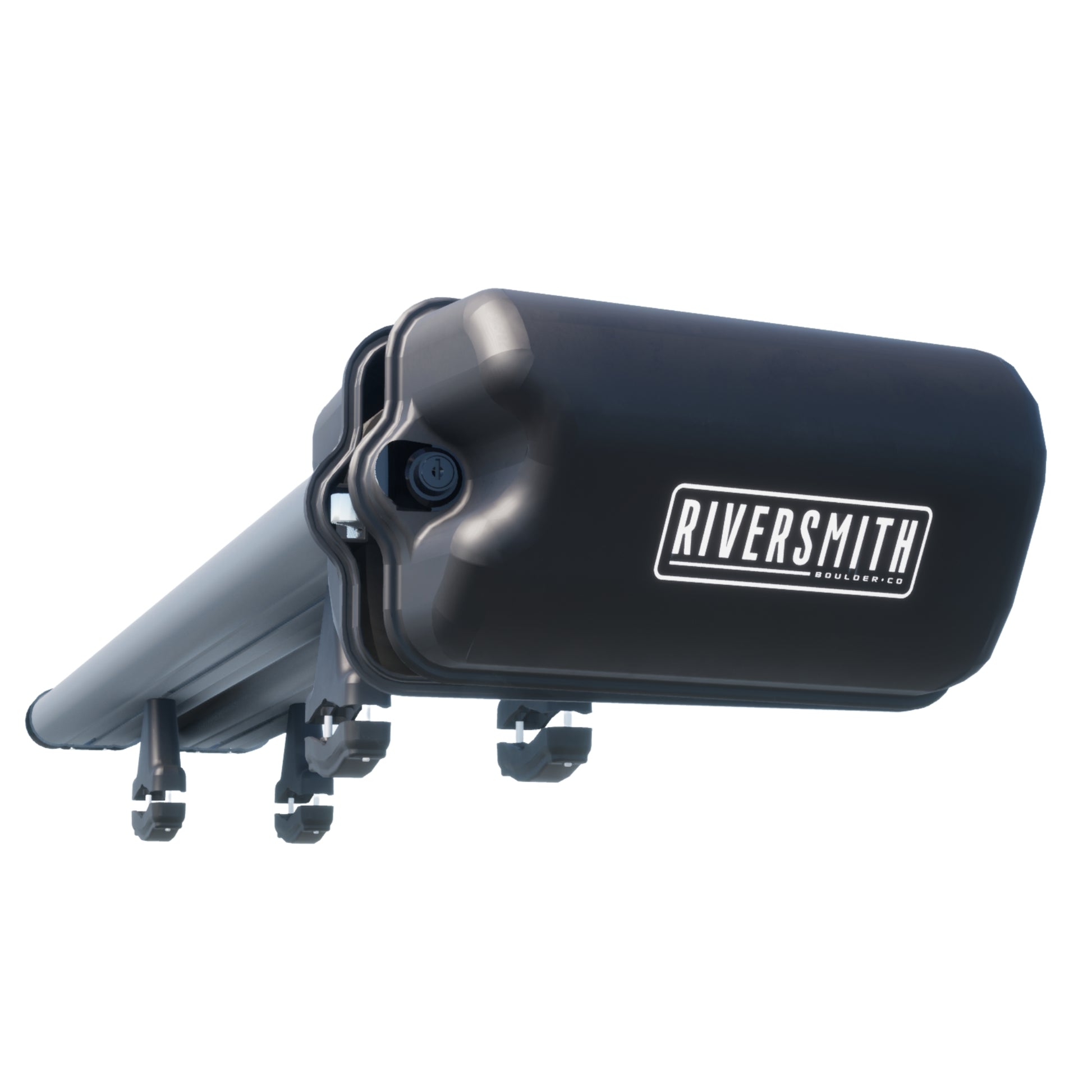

Standard Mount
Standard Mount Specs
Mount Time: 15-25 Minutes
Added Total Height (including River Quiver Extrusions): 5”
Crossbars thicker than 1.5” require Extended Bolts (Sold Separately)
Crossbars that sit lower than average; < 1.5" from top of crossbar to top of roof may require Shorter Bolts (Sold Separately) - Common on earlier generation 4Runner and CRV.
Can be Secured with Locking Bolts (Sold Separately)
TOOLS REQUIRED:
- Mini Ratchet OR 4mm Allen Key
Best For:
-
Most Factory Vehicle Crossbars less than 1.5" thick & 3.5" wide.
-
Mounting configurations where overall height is not an issue.
-
Most cost-effective mount.
-
Reel Box Down mounting configurations on bars < 2" taller than top of roof. (see height guide below)

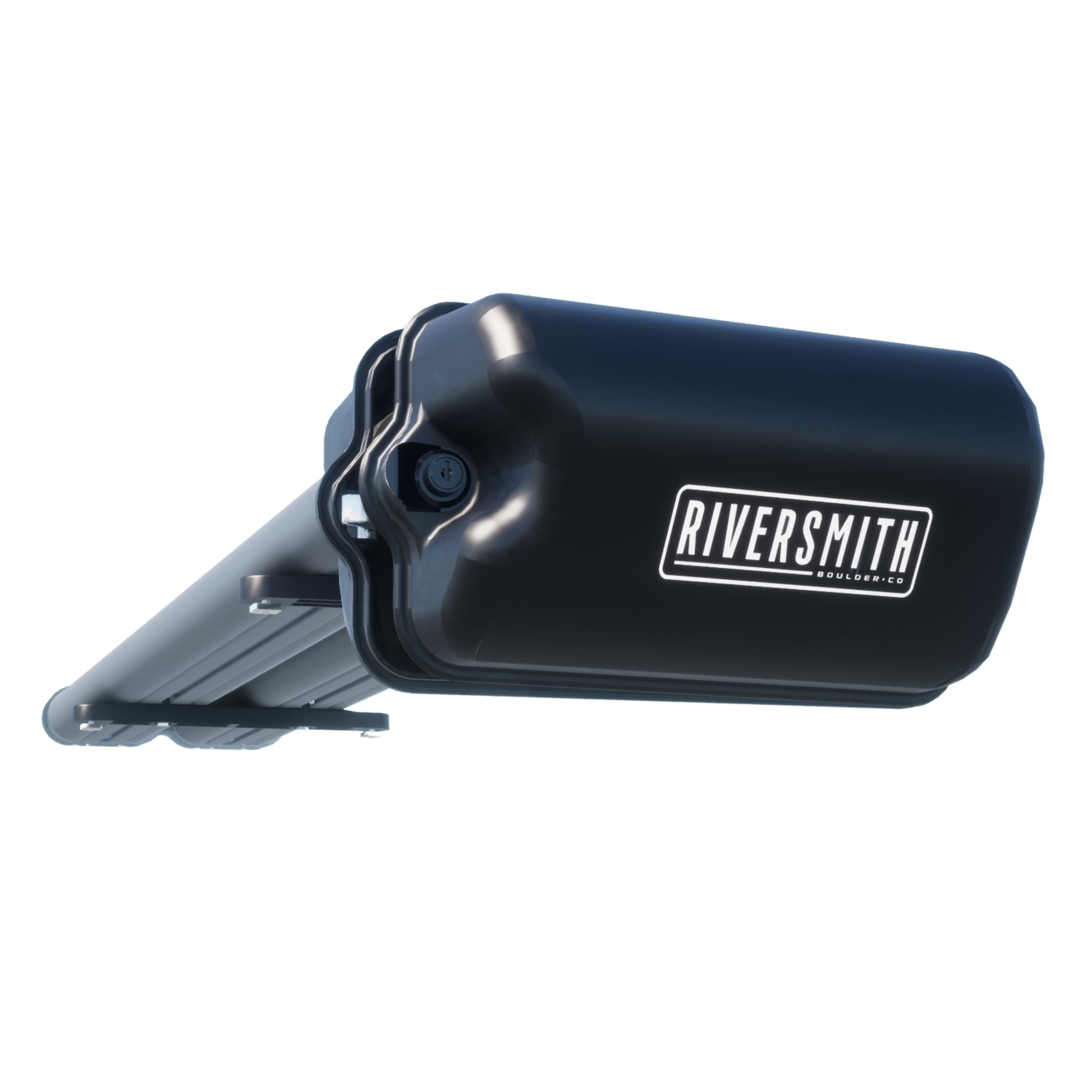

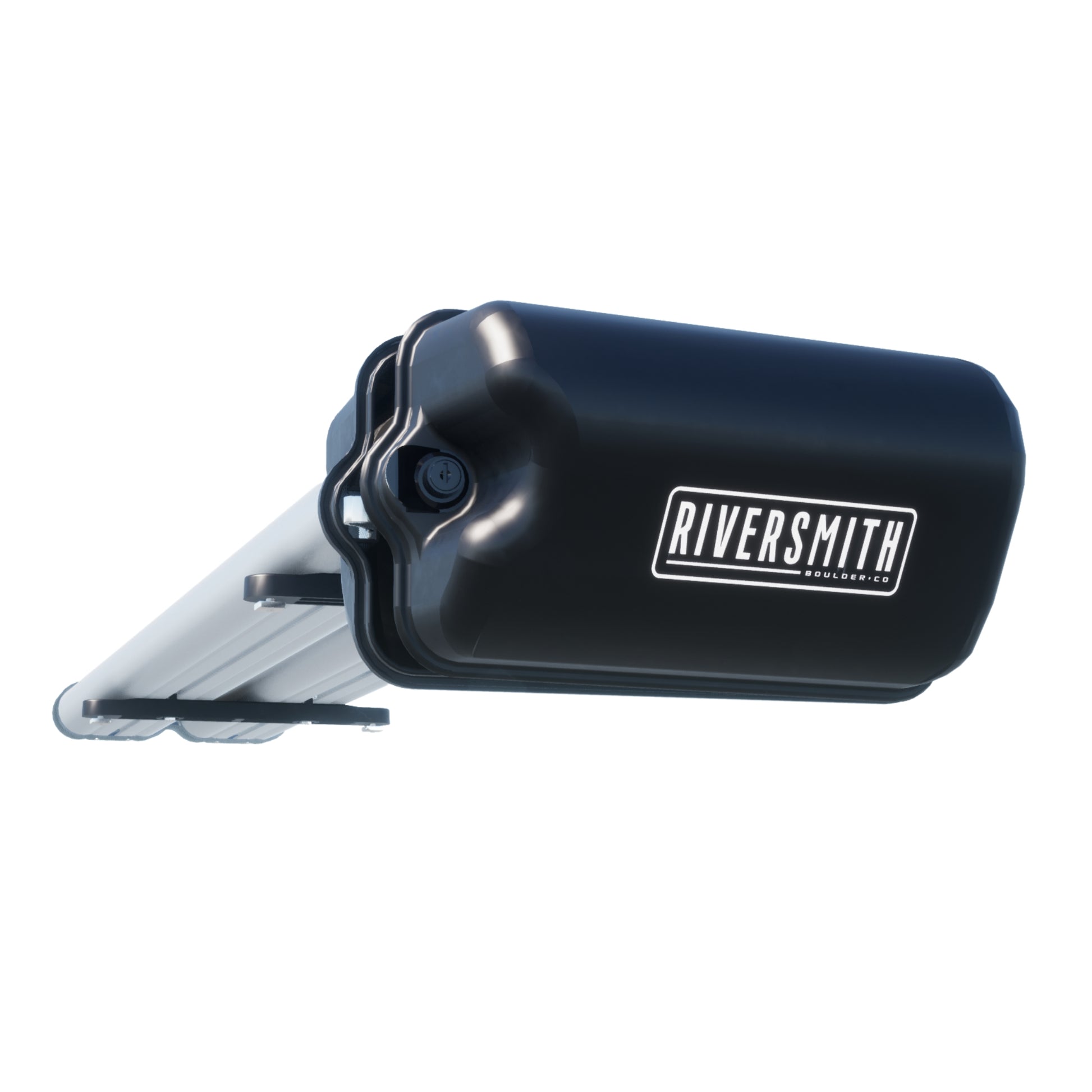

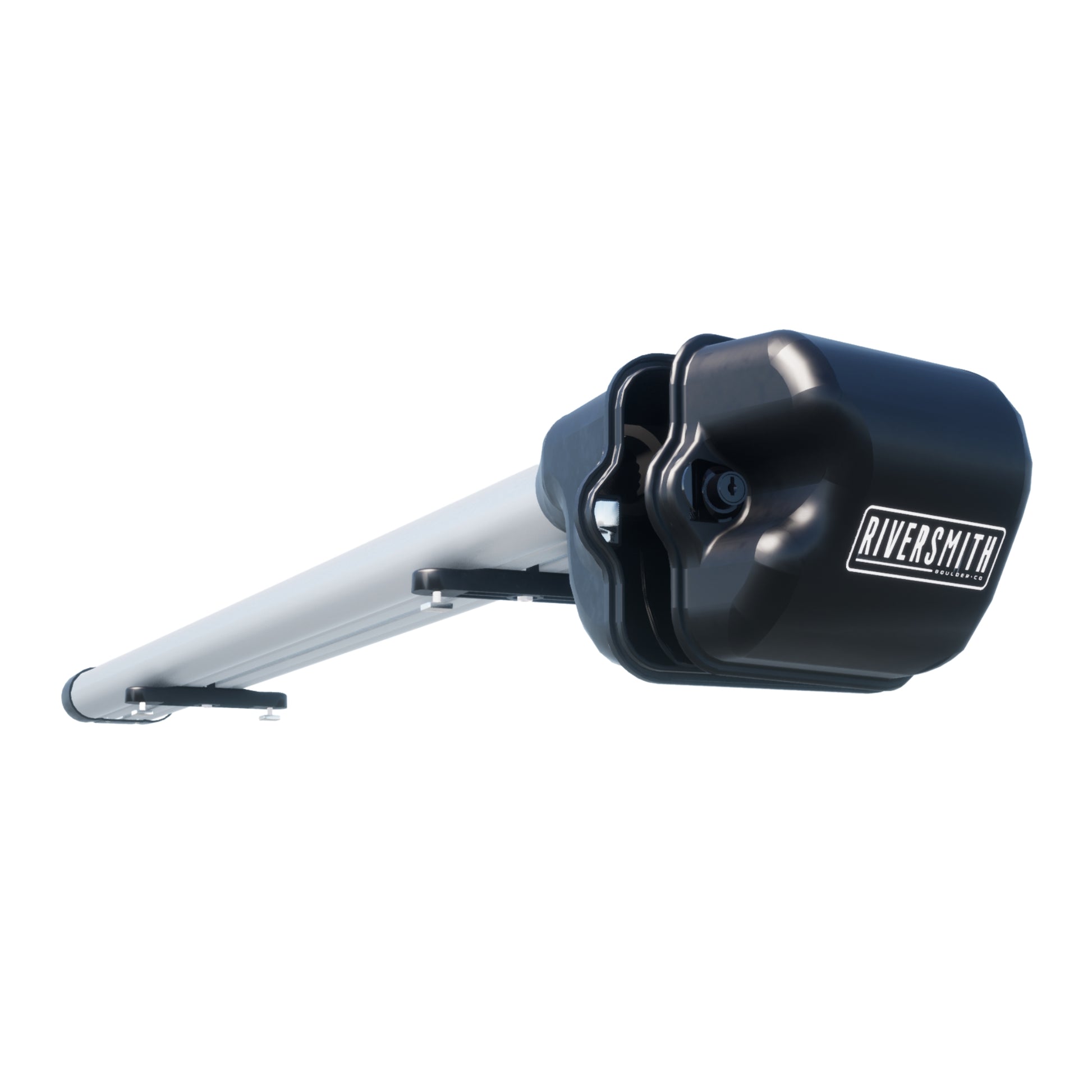

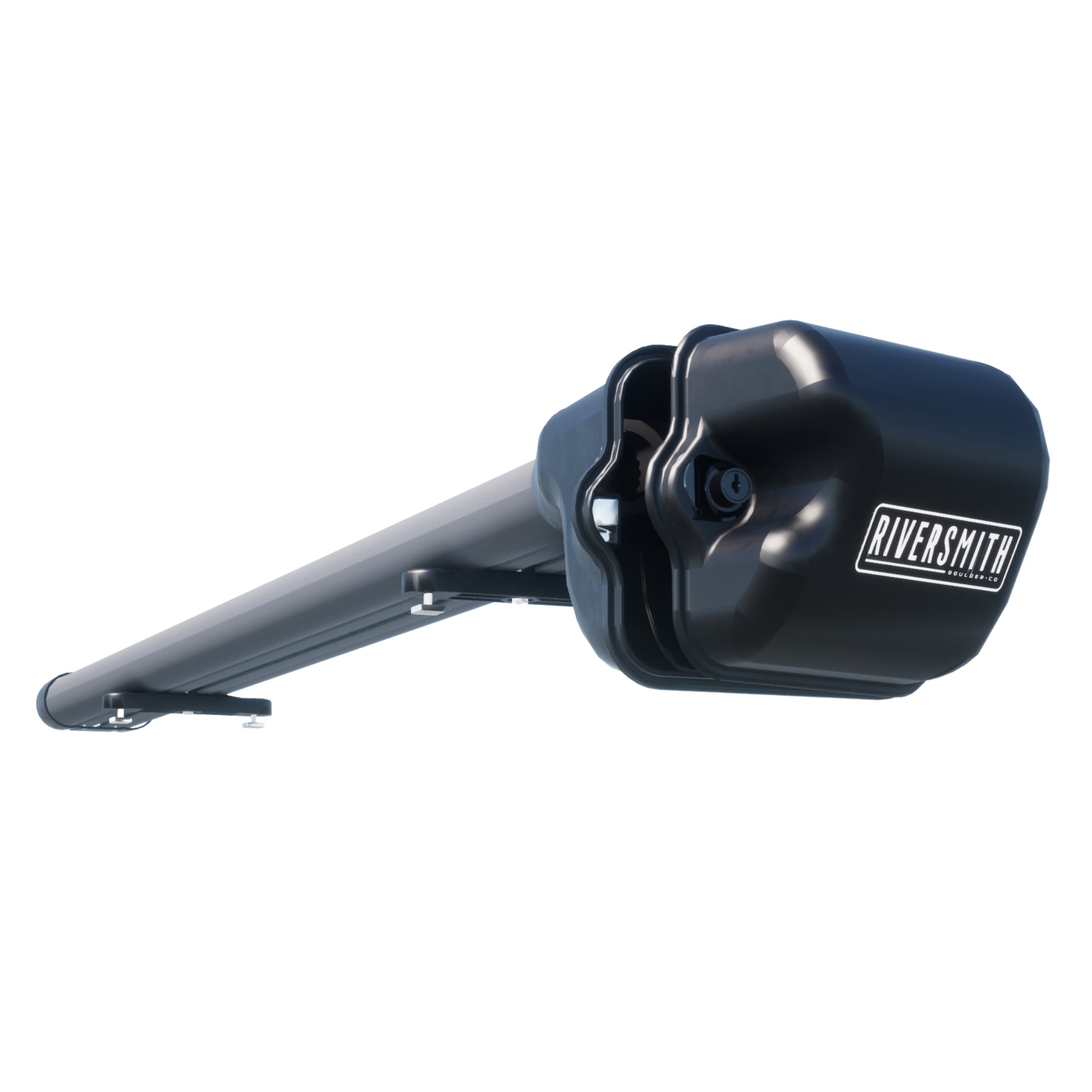

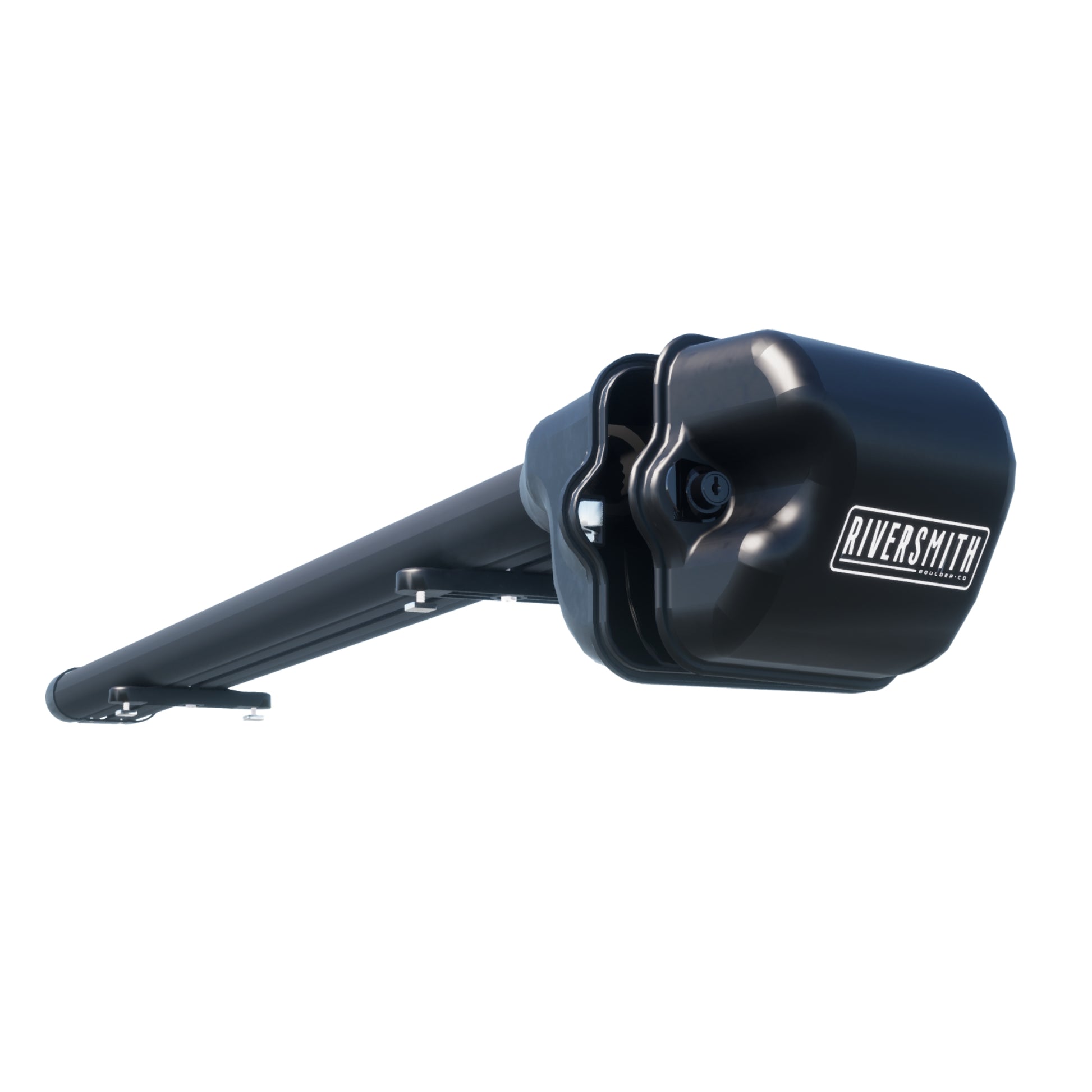

Low-Profile T-Track Mount
Mount Time: 7 Minutes
Added Total Height (including River Quiver Extrusions): < 3"
Mounts Directly to any T-Track System
Secured with Unique Key Driver (Included)
*The included T-Track Hardware is 18mm Square, standard for most Yakima, Thule and similar platforms. Racks that utilize T-Track that is not 18mm square will require additional hardware not included and to be sourced directly from the rack manufacturer.
TOOLS REQUIRED:
- Mini Ratchet OR 4mm Allen Key
Best For:
- Factory & Aftermarket Vehicle Crossbars with integrated T-Tracks.
- Rhino-Rack Crossbars.
- Overland Style Rooftop and Bed Racks.
- Reel Box Up Mounting on Toyota 4Runners with aftermarket Overland racks (Prinsu, Sherpa, Etc).
- Mounting below (hanging) a Rooftop Tent on a bed rack or taller roof rack.
- The lowest possible River Quiver mounting solution on compatible racks.

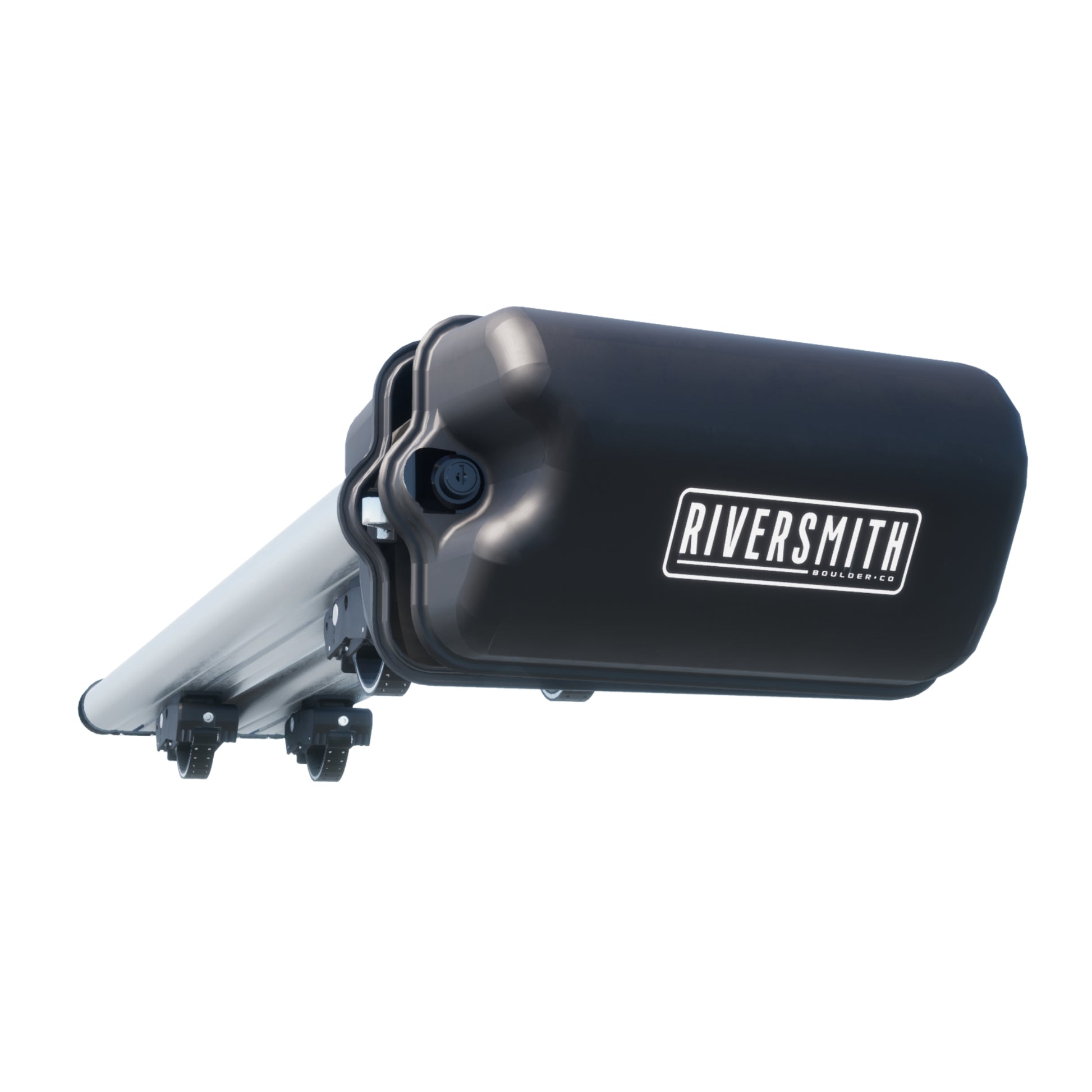

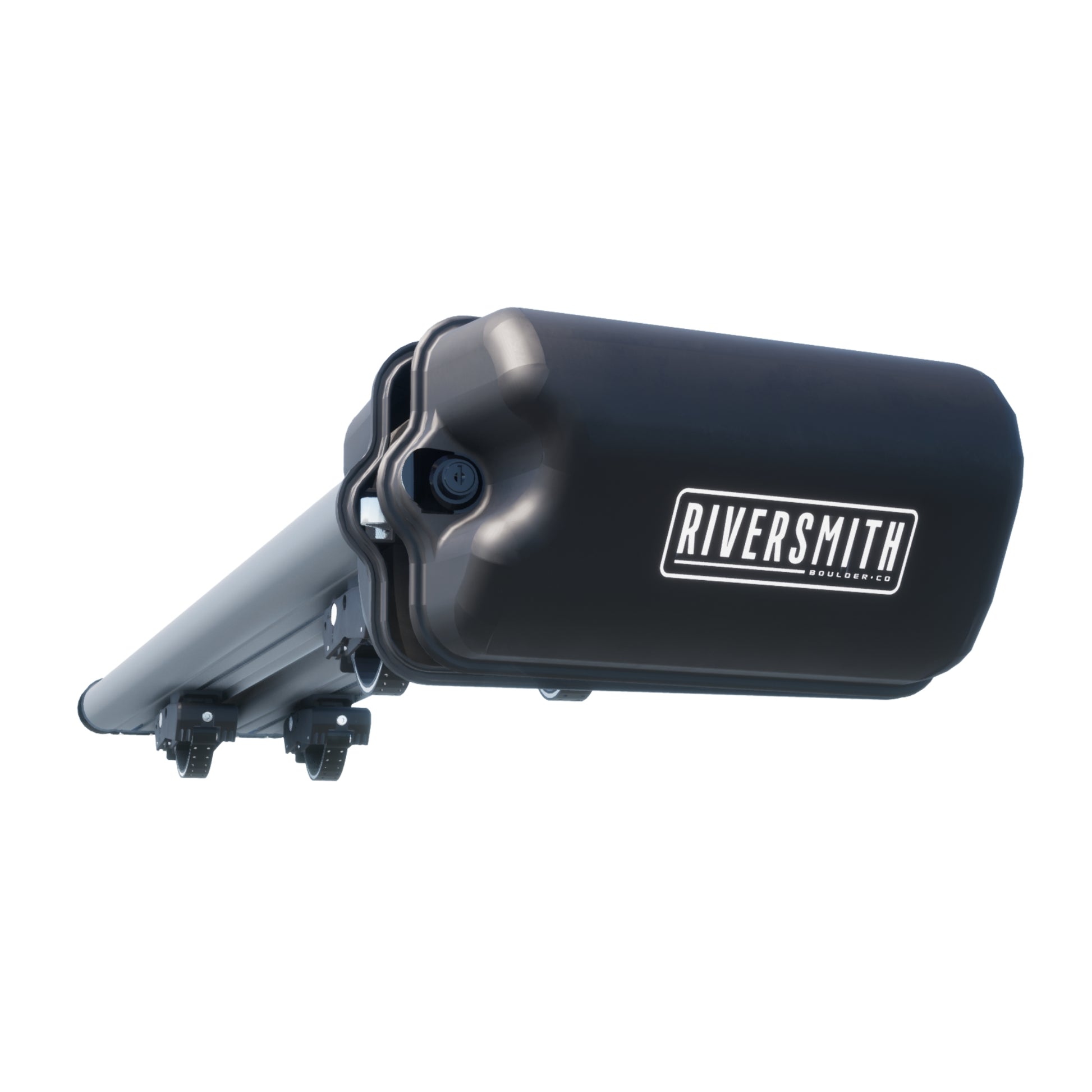

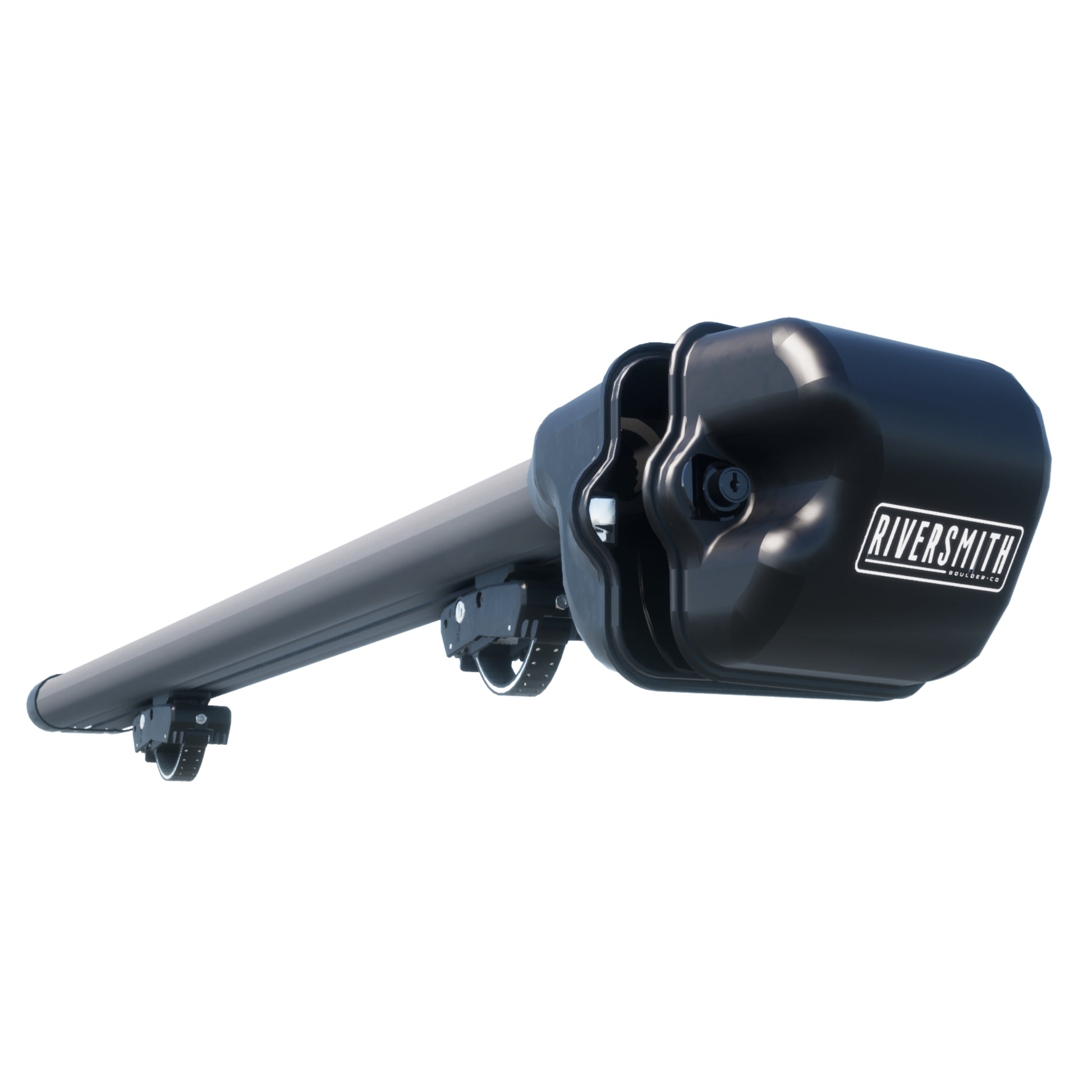

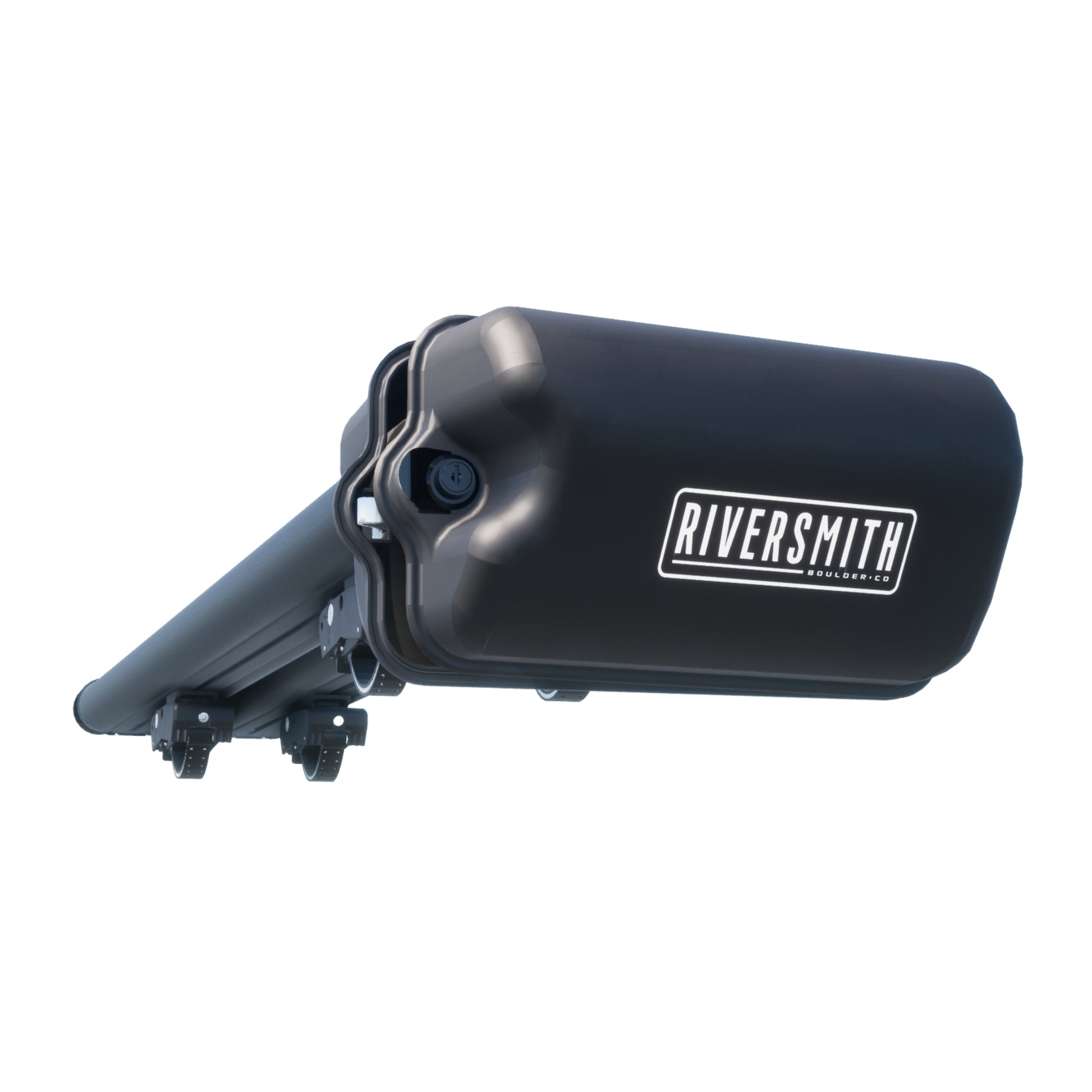

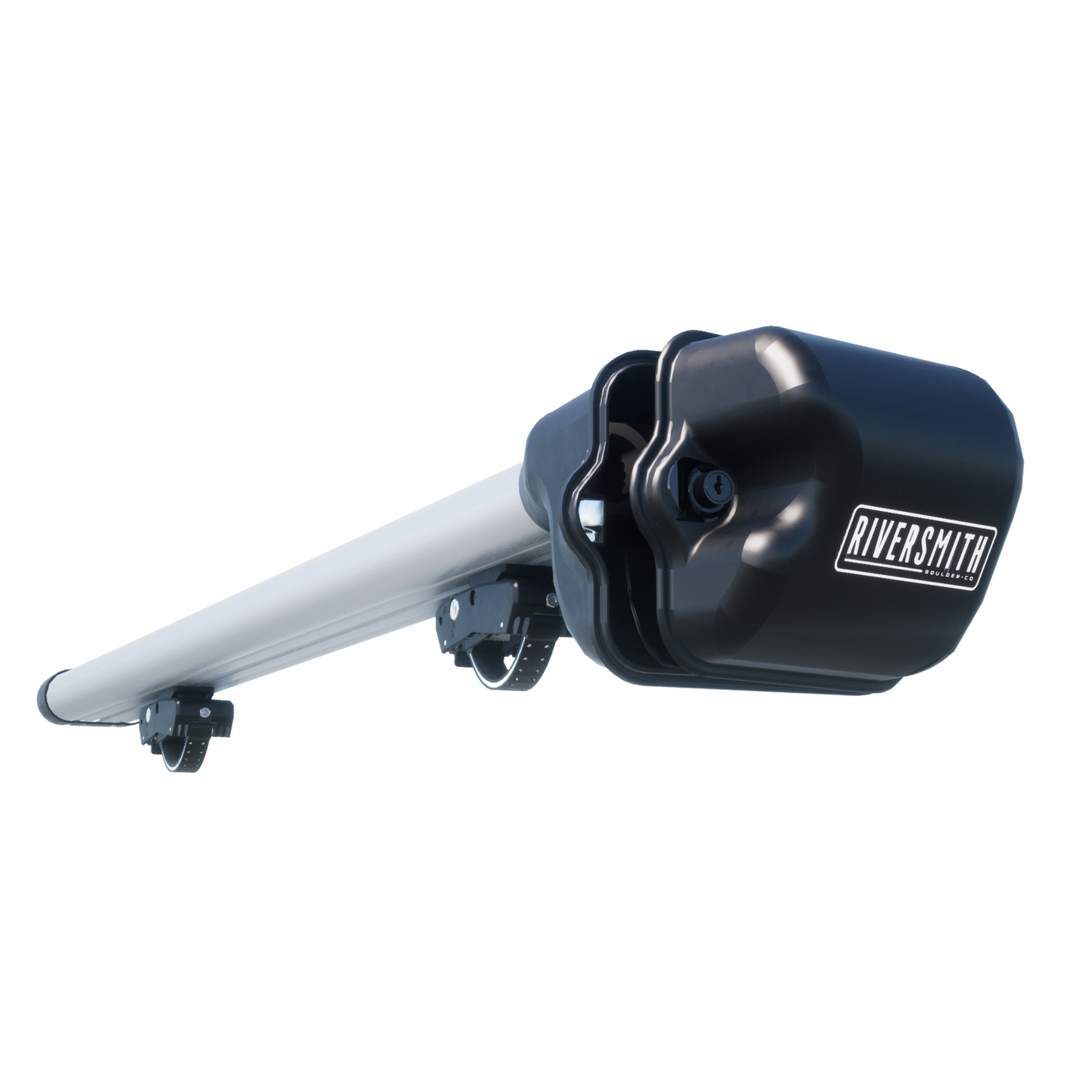

Quick Release Mount
Quick Release Mount Specs
Mount Time: 3 Minutes (add a few minutes for initial setup)
Added Total Height (including River Quiver Extrusions): 4”
Quick and convenient Installation
Secured to Roof Rack With Lock and Key (Included)
2-Banger Set includes two mounts, one uniquely keyed and one locking blank.
4-Banger Set includes four mounts, two uniquely keyed and two locking blank.
TOOLS REQUIRED:
- Mini Ratchet OR 4mm Allen Key
Best For:
- The widest range of Factory & Aftermarket Vehicle Crossbar systems.
- Lower profile mounting than Standard Mount.
- Mounting scenarios where the River Quiver needs to be removed from the vehicle frequently.
- Reel Box Up Mounting on Toyota 4Runners with factory or more traditional aftermarket racks (Yakima, Thule, etc).
- End users who prefer the added security of a key locking mount.
- Larger than average Vehicle Crossbar Systems. The rubberized stainless steel strap is highly adjustable and works with the most extreme range of bar shapes and thicknesses.
Mounting Dimension Guide
- Limited Lifetime Warranty
- 30 Day Returns
Get to the water faster while taking up a minimum amount of space on your vehicle with the ShortCut River Quiver.
- ShortCut Length River Quiver
- Rod Chairs
- Reel Box Pads
- River Quiver Keys
- Mounts and Hardware
- Reusable Rivets for Nose Cone
- QR Card Installation Guide
- Installation Multi-Tool
- Length: 5'8 3/4" (accommodates rods up to 10'4")
- Width: 2-Banger 8", 4-Banger 14.2”
- Height: 7.4”
- Height off Crossbar: 3 3/8" - 6" Depending on Mounts
- Weight: 2-Banger 15 lbs, 4-Banger 25 lbs
- Versatile Mounting Solutions
- Holds rods up to 10' 4" length
- Holds rods and reels up to 12 weight capacity
- Lined with polypropylene liner to protect rods in transit
- Rod Chairs keep rod broken down in half secure to avoid tangles when fully rigged
- T-track on top and bottom of extrusion for mounting
