River Quiver Mounts

Versatile mounting options make it possible to fit a River Quiver onto most vehicle crossbars.



Standard Mount

Standard Mount Specs

Mount Time: 15-25 Minutes

Added Total Height (including River Quiver Extrusions): 5”

Crossbars thicker than 1.5” require Extended Bolts (Sold Separately)

Crossbars that sit lower than average; < 1.5" from top of crossbar to top of roof may require Shorter Bolts (Sold Separately) - Common on earlier generation 4Runner and CRV.

Can be Secured with Locking Bolts (Sold Separately)

TOOLS REQUIRED:
- Mini Ratchet OR 4mm Allen Key

-10mm Nut Driver

Best For:

  • Most Factory Vehicle Crossbars less than 1.5" thick & 3.5" wide.

  • Mounting configurations where overall height is not an issue.

  • Most cost-effective mount.

  • Reel Box Down mounting configurations on bars < 2" taller than top of roof. (see height guide below)

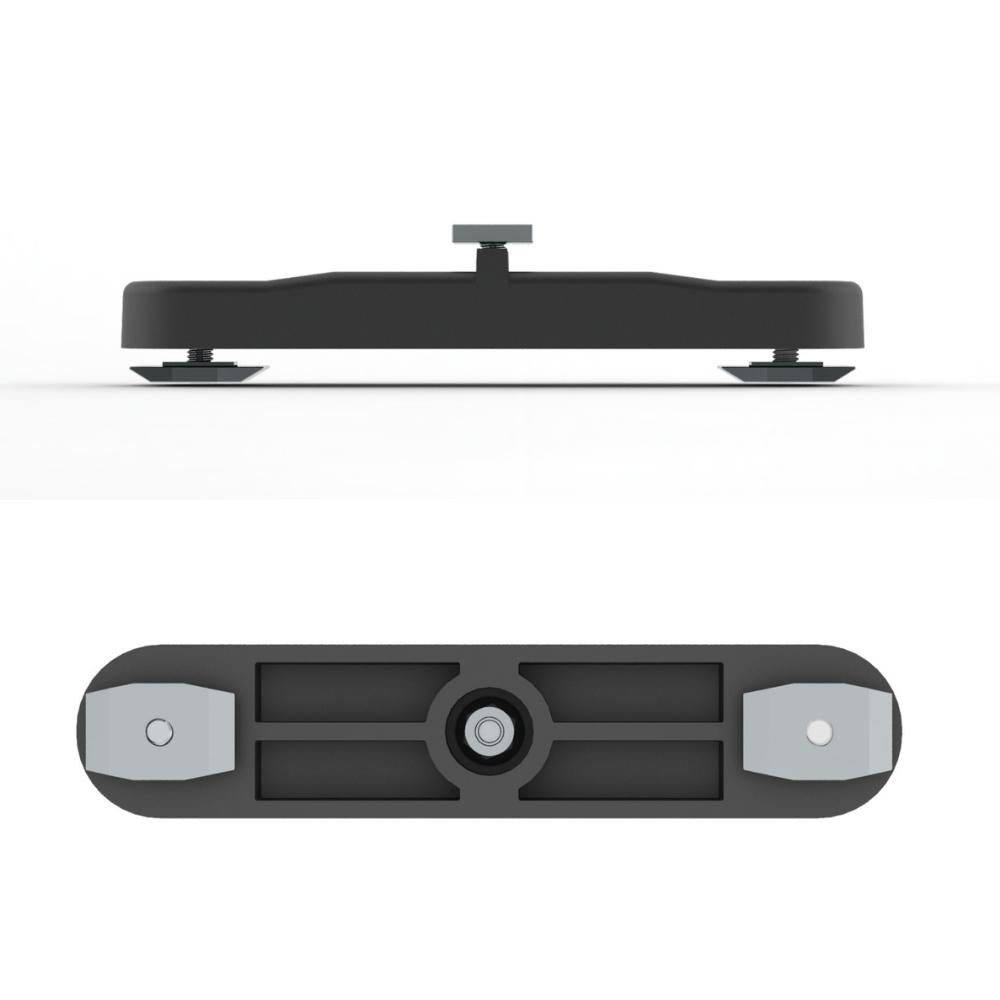

Low-Profile T-Track Mount

Low-Profile T-Track Mount Specs

Mount Time: 7 Minutes

Added Total Height (including River Quiver Extrusions): < 3"

Mounts Directly to any T-Track System

Secured with Unique Key Driver (Included)

*The included T-Track Hardware is 18mm Square, standard for most Yakima, Thule and similar platforms. Racks that utilize T-Track that is not 18mm square will require additional hardware not included and to be sourced directly from the rack manufacturer.

TOOLS REQUIRED:
- Mini Ratchet OR 4mm Allen Key

-10mm Nut Driver



Best For:

  • Factory & Aftermarket Vehicle Crossbars with integrated T-Tracks.
  • Rhino-Rack Crossbars.
  • Overland Style Rooftop and Bed Racks.
  • Reel Box Up Mounting on Toyota 4Runners with aftermarket Overland racks (Prinsu, Sherpa, Etc).
  • Mounting below (hanging) a Rooftop Tent on a bed rack or taller roof rack.
  • The lowest possible River Quiver mounting solution on compatible racks.



Quick Release Mount

Quick Release Mount Specs

Mount Time: 3 Minutes (add a few minutes for initial setup)

Added Total Height (including River Quiver Extrusions): 4”

Quick and convenient Installation

Secured to Roof Rack With Lock and Key (Included)

2-Banger Set includes two mounts, one uniquely keyed and one locking blank.

4-Banger Set includes four mounts, two uniquely keyed and two locking blank.

TOOLS REQUIRED:
- Mini Ratchet OR 4mm Allen Key

Best For:

  • The widest range of Factory & Aftermarket Vehicle Crossbar systems.
  • Lower profile mounting than Standard Mount.
  • Mounting scenarios where the River Quiver needs to be removed from the vehicle frequently.
  • Reel Box Up Mounting on Toyota 4Runners with factory or more traditional aftermarket racks (Yakima, Thule, etc).
  • End users who prefer the added security of a key locking mount.
  • Larger than average Vehicle Crossbar Systems. The rubberized stainless steel strap is highly adjustable and works with the most extreme range of bar shapes and thicknesses.



Mounting Dimension Guide

Mounting FAQ

The River Quiver is designed to fit most commercial roof rack systems. In fact, Riversmith engineers haven’t yet found a commercial rack that doesn’t fit. We completed a thorough review of multiple brands and styles of rack to make sure there were no limitations with our product. If the thickness of crossbars is over 1 3/8” it will require extended bolts(Sold Separately). If the crossbars sit lower than average; < 1.5" from top of crossbar to top of roof, it will require shorter bolts (Sold Separately).This is common in earlier generations of the Toyota 4Runner and Honda CRV factory Racks.

Mini Ratchet: Speeds installation of your River Quiver. Includes 4mm Hex Bit to install Mounting Bolts and Coupler Bolts. Also fits Mount Lock Key Bit to speed installation of Mount Lock.

10 mm Nut Driver: A 10mm Nut Driver is required to fasten the mounting bracket.

The spacer kit is available for configurations that require the River Quiver to be mounted higher than the standard mounts allow, such as a car with a spoiler or lift gate. This gives it additional space for the River Quiver to fit securely on the vehicle while not being intrusive. Most rear gates can be cleared without a spacer kit as long as you measure for installation with the gate open.

Our Standard Mount can be upgraded with custom locking bolts. This lock system consists of unique bolt heads and matching key. The mount lock further secures the River Quiver to a roof rack, providing additional peace of mind that your gear will stay where you left it. Additionally, the Quick Release Mounts do come with a uniquely keyed lock, and the Low-Profile Mounts include security bolts for additional convenience and security when mounting your River Quiver.

For the Standard Mount; Extended Mounting Bolts are used to fit larger than normal roof rack bars. If the thickness of crossbars is over 1 3/8” it will require extended bolts.  These bolts are an extended version of the standard mounting bolts that attach the River Quiver mounting bracket to your roof rack. They are 1'' longer in case you have installed a Spacer Kit with your River Quiver fly rod holder or have larger than normal crossbars. We also have the high-security version of the Locking Extended Mount Bolts.

The Quick Release is the most versatile River Quiver Mount. The rubberized stainless steel strap is highly adjustable and works with the most extreme range of bar shapes and thicknesses.

You do need a roof rack with 2 crossbars to attach the River Quiver to your vehicle in most cases (with River Quiver Mounts). If you own a pickup truck, cross bars are not required. Check our Truck Bed ShortCut here.

The short answer is yes, but it all depends on the cross-bar system you have on your vehicle. We have three different mounting options that will accommodate all different roof rack styles and your specific needs. To read more about these mounting options, please click here.

Yes, most SUV's with a hatch require the River Quiver to be mounted with both brackets on rear half of the coupler. This is okay and does not affect the functionality of the unit.

Simply change the mounts to the opposite mounting track and mount the River Quiver Reel Box Up. Reel box up is a very popular, and easy fix; the beauty of the River Quiver is that is can be mounted reel box up, reel box down, sideways, hanging below the rack, whatever you can dream of and will work with your rack/vehicle. You will not see any difference in performance in any River Quiver Orientation. You can simply flip the rear Riversmith logo and re-adhere if needed.

If the crossbars sit lower than average; < 1.5" from top of crossbar to top of roof, it will require shorter bolts (Sold Separately)

Riversmith recommends hand washing your vehicle while the River Quiver is attached. Brushless car washes, or any car wash with a sign noting it is rooftop accessory friendly, may be safe, so long as you have adequate clearance. Any brushed carwash should be avoided, as the attachment of the crossbars to your vehicle is the likely fail point, as is the case with most rooftop accessories.
